Thread Rolling Machine

Thread Rolling Machine built to enhance manufacturing throughput and reduce labor costs in thread production processes

All Category

Wire Reducing Machine

Mr. Guo

516074989@qq.com

+8613002055872

8613002055872

Chat Now

Thread Rolling Machine built to enhance manufacturing throughput and reduce labor costs in thread production processes

Brand Name:	Heling Machine
Model Number:	M6-70Z
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	80+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Name:

Thread Rolling Machine

Voltage:

380V/440V/415V,50HZ/60HZ

Usage:

Efficient Automation Fully Automatic Continuous Operation, Integrating Multiple Processes Such As Straightening, Cutting, Forming, And Thread Rolling, Significantly Improving Production Efficiency And Reducing Labor Costs. Precision And Reliability Adoptin

Warranty:

1 Year

After-sales Service Provided:

Online Support,Video Technical Support

Core Components:

Bearing, Motor, Pump

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Package:

Wooden Case

Color:

Customizable

Packaging Details:

wooden box

Supply Ability:

80+SET+PER month

Highlight:

Industrial Thread Rolling Machine

Thread Rolling Machine Fully Automatic

Thread Roller Machine Heavy Duty

Product Description

Industrial Thread Rolling Machine, Stable Workmanship & Cost-Effective

Key Features

Wide Specification Adaptability
This machine supports wire diameters from Φ3mm to Φ16mm, compatible with metric, inch and UNF thread types. It meets most matching demands for industrial fastener production.
Dual-mode Operation
It adopts dual working modes: semi-automatic and full automatic. Suitable for trial production and large-scale mass production, with stable output of 60–120 pieces per minute.
Heavy-duty & Stable Structure
Equipped with 12mm thick steel plate frame, integral welding and stress relief treatment. Core thread rolling wheels are well crafted for long service life.
Energy Saving Performance
Built with frequency conversion motor. The power consumption is about 3–5kW per hour, effectively lowering daily operating cost compared with conventional equipment.

Technical Specifications

Model	Max.Thread Diameter(mm)	Max.Length(mm)	Motor(kw)	Capacity (PCS/mm)	Volume(LWH)(m)	Weight(kg)
M5-65Z	5	65	3	120-140	1.501.301.10	975
M6-70Z	6	70	4	80-100	1.601.601.35	1040
M6-120Z	6	120	4	80-100	1.601.601.35	1300
M8-80Z	8	80	4	80-100	1.741.361.20	1400
M10-130Z	10	130	11	70-90	2.001.481.30	2000
M12-200Z	12	200	18.5	40-50	2.451.601.45	3100
M14-200Z	14	200	22	30-40	2.501.651.50	4800
M16-150Z	16	150	30	30-40	2.802.101.70	5500
M16-300Z	16	300	30	30-40	2.802.101.75	6000

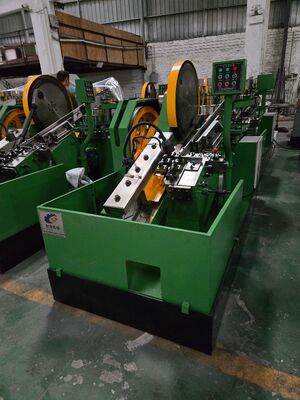

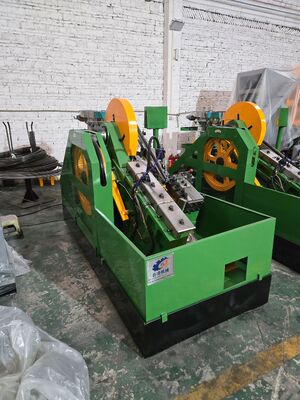

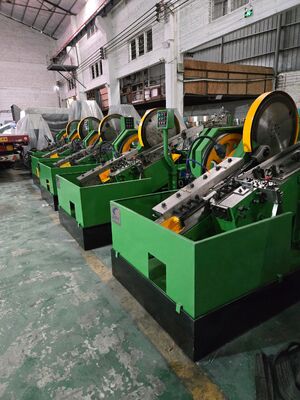

Product Overview

Thread Rolling Machine built to enhance manufacturing throughput and reduce labor costs in thread production processes 0

Thread Rolling Machine built to enhance manufacturing throughput and reduce labor costs in thread production processes 1

Thread Rolling Machine built to enhance manufacturing throughput and reduce labor costs in thread production processes 2

Competitive Advantages

Factory Direct Pricing
Cut 20%-30% of intermediate trade costs, significantly lowering procurement budget while ensuring premium quality.

Manufacturing Excellence
