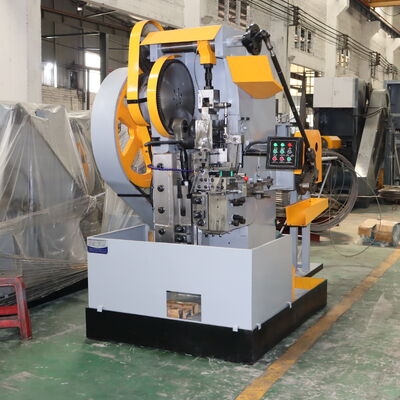

ST10-100 Factory Direct Multi-station Integrated Forming Machine Double-thread Forming Stamping Flattening High Productivity

Brand Name:	Heling Machine
Model Number:	ST10-100
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	80+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

10221508

Name:

Thread Rolling Machine

Voltage:

380V/440V/415V,50HZ/60HZ

Warranty:

1 Year

After-sales Service Provided:

Online Support,Video Technical Support

Core Components:

Bearing, Motor, Pump

Usage:

Efficient Automation Fully Automatic Continuous Operation, Integrating Multiple Processes Such As Straightening, Cutting, Forming, And Thread Rolling, Significantly Improving Production Efficiency And Reducing Labor Costs. Precision And Reliability Adoptin

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Package:

Wooden Case

Color:

Customizable

Packaging Details:

wooden box

Supply Ability:

80+SET+PER month

Product Description

Automatic straightening, cutting, stamping and thread forming machine

Feature:

1.Four-process integration: Straightening, cutting, stamping, and thread forming are completed in an integrated manner. Once feeding, the whole process is automated, reducing manual intervention and process connection time, and increasing production efficiency by more than 60%.

2.High efficiency and low consumption: Four processes operate synchronously, with an output of 45pcs/min. Energy-saving design reduces operating costs.

3.Stable and durable: High-quality steel body + reinforced transmission system, low failure rate and long service life.

4.Flexible customization: Supports quick mold change, adapts to multiple specifications/non-standard parts, and meets diverse production needs.

Specification:

Model	Diameter Range (mm)	Length Range (mm)	Motor(KW)	Weight (KG)	Capacity (PCS/min)	Volume(LWH)(m)
ST8-100	8-10	100	11	2000	60-80	1.741.361.7
ST10-100	10-12	100	11	2800	50-70	21.31.8
ST12-160	12-14	160	18.5	4200	40-60	2.21.42.1
ST14-200	14	200	22	6500	40-50	2.41.552.35
ST16-300	16	300	30	8000	35-40	2.51.82.4
ST16-500	16	500	45	9500	30-35	3.41.952.65

Description:

ST10-100 Factory Direct Multi-station Integrated Forming Machine Double-thread Forming Stamping Flattening High Productivity 0

Advantage:

Independently developed transmission technology ensures stable, durable equipment with a low failure rate; full automation saves labor + low energy consumption controls costs, quickly responds to non-standard customization, provides timely after-sales service, and adapts to diverse foreign trade procurement needs.

Factory Showcase:

ST10-100 Factory Direct Multi-station Integrated Forming Machine Double-thread Forming Stamping Flattening High Productivity 4
