High-Precision U Bolt Making Machine: Boost Your Fastener Production Efficiency

Brand Name:	Heling Machine
Model Number:	M10-400u
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	20+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

10221508

Name:

U Bolt Making Machine

Usage:

After The Wire Is Input, It Is Automatically Formed, Threaded, And Precisely Cut, Efficiently Producing Finished U-bolts.

Voltage:

380V/440V/415V,50HZ/60HZ

After-sales Service Provided:

Online Support,Video Technical Support

Core Components:

Bearing, Motor, Pump

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Warranty:

1 Year

Package:

Wooden Case

Color:

Customizable

Packaging Details:

wooden box

Supply Ability:

20+SET+PER month

Highlight:

high-precision U bolt machine

U bolt making machine with warranty

fastener production efficiency machine

Product Description

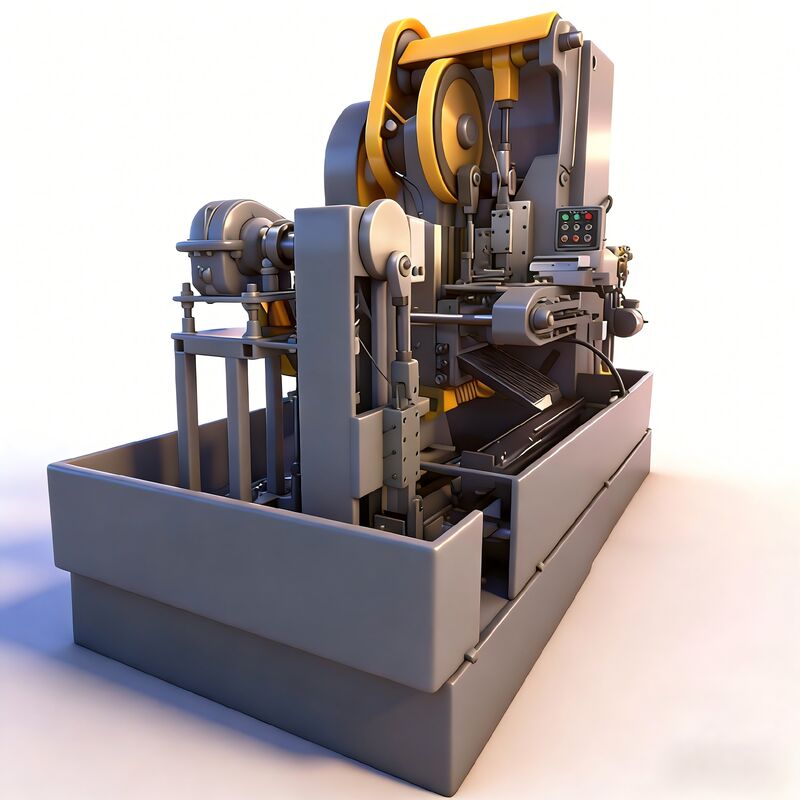

Compact Automatic U-Bending Machine: Space-Saving for Small Workshops

Feature:

Dual-Station Forming Design enables simultaneous processing of two workpieces, doubling production speed.
Intelligent CNC Control System supports precise parameter setting and real-time production monitoring.
Automatic Material Feeding & Cutting eliminates manual handling and reduces human error.
Adjustable Forming Dies can be swapped quickly to produce U bolts of different diameters and lengths.

Specification:

Model	Range of manufacturable diameters (mm)	Customizable length range (mm)	Weight (KG)	Capacity (PCS/mm)
M6	4-6	70-200	1500-2800	40-65
M8	5-8	80-300	2000-3100	40-60
M10	6-10	130-500	2900-4200	25-60
M12	8-12	160-800	3700-11000	25-55
M14	10-14	200-800	4300-12000	25-55
M16	12-16	200-800	6800-13500	25-50
M20	16-20	400-800	12500-18000	25-45
M24	18-24	400-1000	13500-21000	20-40
M27	20-27	400-1000	1400-23000	15-35

Description:

Advantage:

Delivers 30% higher production efficiency compared to semi-automatic U bolt making machines, shortening delivery times.
Ensures ±0.1mm dimensional accuracy for each U bolt, meeting strict industrial quality standards.

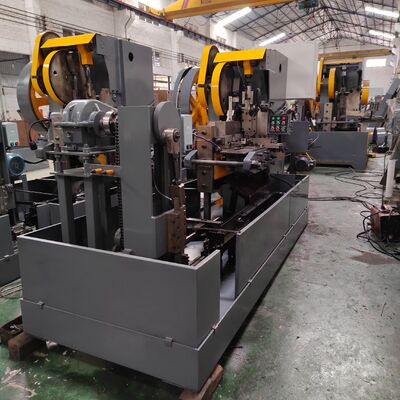

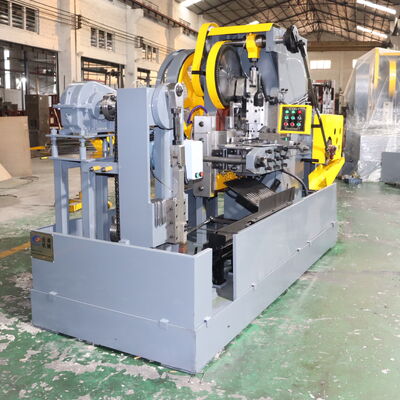

Factory Showcase:

High-Precision U Bolt Making Machine: Boost Your Fastener Production Efficiency 8

EtiExhibition:
