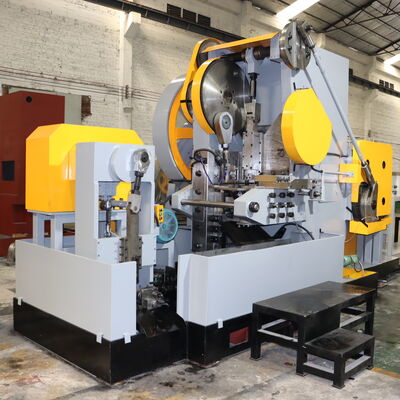

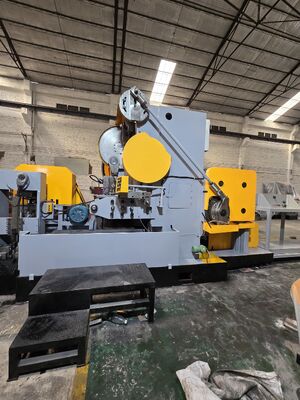

High Precision U Bolt Making Machine Fully Automated High Productivity

Brand Name:	Heling Machine
Model Number:	M24-400U
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	80+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

10221508

Name:

U Bolt Making Machine

Usage:

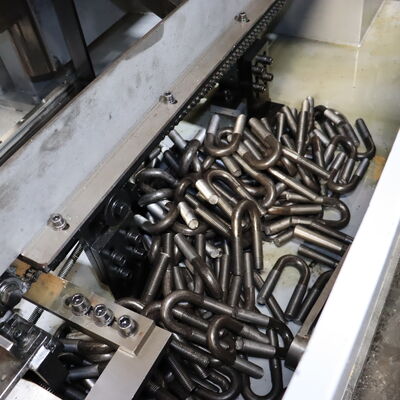

After The Wire Is Input, It Is Automatically Formed, Threaded, And Precisely Cut, Efficiently Producing Finished U-bolts.

Warranty:

1 Year

After-sales Service Provided:

Online Support,Video Technical Support

Core Components:

Bearing, Motor, Pump

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Package:

Wooden Case

Color:

Customizable

Voltage:

380V/440V/415V,50HZ/60HZ

Packaging Details:

wooden box

Supply Ability:

80+SET+PER month

Highlight:

High Precision U Bolt Making Machine

U Bolt Making Machine Fully Automated

U Bolt Maker Fully Automated

Product Description

High Precision U Bolt Making Machine Featuring Patented Dual Molds and Automated Operation for Large Scale Manufacturing

Feature:

Efficient Automation Fully automatic continuous operation, integrating multiple processes such as straightening, cutting, forming, and thread rolling, significantly improving production efficiency and reducing labor costs.
Precision and Reliability Adopting high-precision mechanical design and advanced manufacturing technology to ensure stable processing accuracy and reliable product quality; pneumatic control and precision transmission systems guarantee accurate and stable equipment operation.
Innovative Structure Unique connecting rod transmission design to optimize mechanical performance; each station is independently adjustable to adapt to diverse production needs; compact structure, strong stability, and capable of withstanding inertial forces during high-speed operation.
Wide Applicability Capability to process multiple materials (universal for iron wire, steel wire, copper wire, stainless steel wire, etc.); supports large coil feeding and non-standard special-shaped part processing, meeting the production requirements of products with different specifications.

Specification:

Model	Range of manufacturable diameters (mm)	Customizable length range (mm)	Weight (KG)	Capacity (PCS/mm)
M6	4-6	70-200	1500-2800	40-65
M8	5-8	80-300	2000-3100	40-60
M10	6-10	130-500	2900-4200	25-60
M12	8-12	160-800	3700-11000	25-55
M14	10-14	200-800	4300-12000	25-55
M16	12-16	200-800	6800-13500	25-50
M20	16-20	400-800	12500-18000	25-45
M24	18-24	400-1000	13500-21000	20-40
M27	20-27	400-1000	1400-23000	15-35

Description:

Advantage:

Heling U-bolt equipment is equipped with patented dual molds, increasing efficiency by over 50%, reducing floor space by 30%, ensuring stable forming and strong consistency.
Fully automatic integrated operation, with a production capacity of 50-60 pieces per minute for M5-M12 specifications, saving 70% of labor and suitable for mass production.
Simple operation + cam transmission, with a precision of ±0.01mm, mark-free forming, low failure rate, meeting the quality requirements of high-end industries.
Suitable for diameters of 5-30mm, multi-shape customization, mold change in 10-30 minutes, energy saving of over 20%, adapting to the differentiated needs of multiple industries.

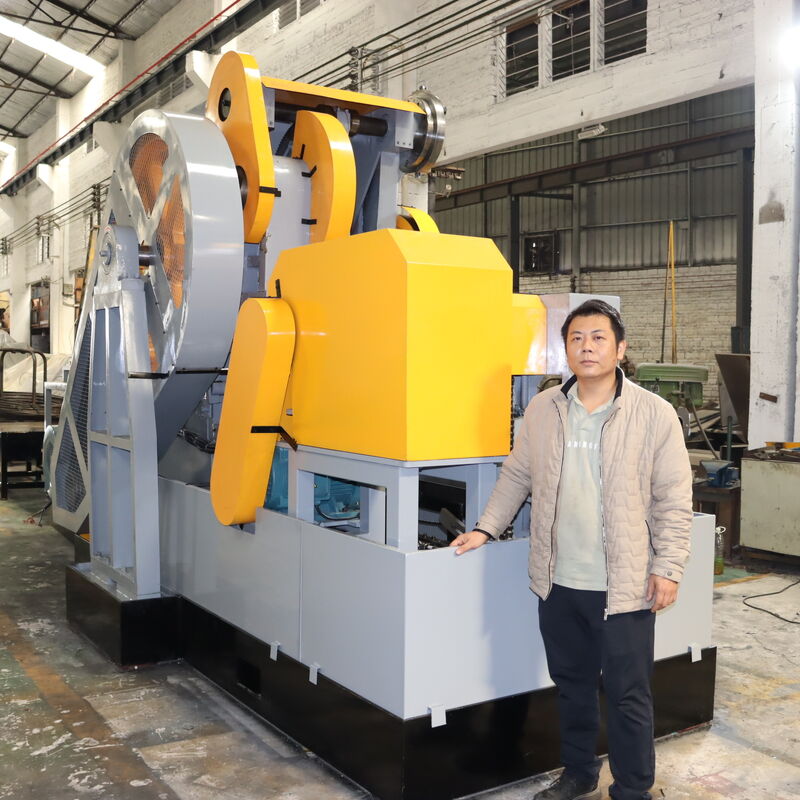

Factory Showcase:

High Precision U Bolt Making Machine Fully Automated High Productivity 8

Exhibition:

High Precision U Bolt Making Machine Fully Automated High Productivity 9
