Energy-Saving Thread Forming Equipment: Cut Operational Costs for Your Workshop

Brand Name:	Heling Machine
Model Number:	M12-300
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	80+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

10221508

Name:

Thread Rolling Machine

Voltage:

380V/440V/415V,50HZ/60HZ

Usage:

Efficient Automation Fully Automatic Continuous Operation, Integrating Multiple Processes Such As Straightening, Cutting, Forming, And Thread Rolling, Significantly Improving Production Efficiency And Reducing Labor Costs. Precision And Reliability Adoptin

Warranty:

1 Year

After-sales Service Provided:

Online Support,Video Technical Support

Core Components:

Bearing, Motor, Pump

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Package:

Wooden Case

Color:

Customizable

Packaging Details:

wooden box

Supply Ability:

80+SET+PER month

Highlight:

energy-saving thread forming machine

thread forming equipment for workshops

low operational cost thread former

Product Description

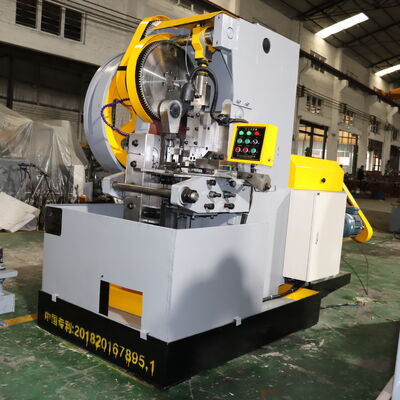

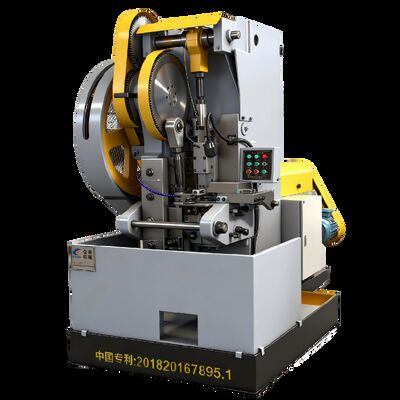

Energy-Saving Thread Forming Equipment: Cut Operational Costs for Your Workshop

Advanced automated solution integrating straightening, cutting, and thread forming processes for maximum efficiency and precision.

Key Features

Safety Protection Cover prevents operator injury and meets international safety standards.
Low Noise Design operates at ≤75dB, creating a comfortable workshop working environment.
Precision Length Control ensures cutting length accuracy within ±0.1mm for consistent product size.
Self-Lubricating System automatically lubricates key components, reducing wear and maintenance frequency.

Technical Specifications

Model	Manufacturable Diameter Range (mm)	Customizable Length Range (mm)	Weight (KG)	Capacity (PCS/min)
M6	4-6	70-200	1000-2000	40-65
M8	5-8	80-300	1700-2400	40-60
M10	6-10	130-500	2200-3200	25-60
M12	8-12	160-800	3000-8500	25-55
M14	10-14	200-800	3800-8600	25-55
M16	12-16	200-800	4200-7800	25-50
M20	16-20	400-800	9500-15000	25-45
M24	18-24	400-1000	10000-15000	20-40
M27	20-27	400-1000	10500-15000	15-35
