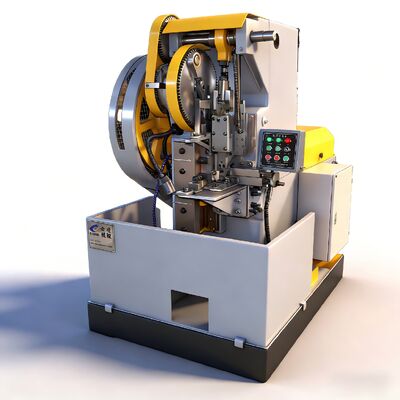

Industrial-Grade Thread Forming Equipment: Ideal for Mass Fastener Production

Brand Name:	Heling Machine
Model Number:	M10-400
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	80+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

10221508

Name:

Thread Rolling Machine

Voltage:

380V/440V/415V,50HZ/60HZ

Usage:

Efficient Automation Fully Automatic Continuous Operation, Integrating Multiple Processes Such As Straightening, Cutting, Forming, And Thread Rolling, Significantly Improving Production Efficiency And Reducing Labor Costs. Precision And Reliability Adoptin

Warranty:

1 Year

After-sales Service Provided:

Online Support,Video Technical Support

Core Components:

Bearing, Motor, Pump

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Package:

Wooden Case

Color:

Customizable

Packaging Details:

wooden box

Supply Ability:

80+SET+PER month

Highlight:

industrial thread forming machine

mass production thread former

heavy-duty thread forming equipment

Product Description

Industrial-Grade Thread Forming Equipment: Ideal for Mass Fastener Production

Advanced automated solution integrating straightening, cutting, and thread forming processes for maximum efficiency and precision.

Key Features

Quick Die Change System allows die replacement in less than 10 minutes, adapting to multi-spec production.
Built-In Error Detection Sensor automatically stops the machine if material jams or parameter deviations occur.
Energy-Efficient Servo Motor consumes 28% less power than traditional motors, lowering electricity bills.
One-Click Operation Interface simplifies the production process, requiring minimal operator training.

Technical Specifications

Model	Max.Thread Diamete (mm)	Max.U-Bolt Blank Length (mm)	Main Motor(KW)	Straighten The Motor(KW)	Weight (KG)	Capacity (PCS/mm)	*Volume(LWH)(m)*
M5-60	5	60	4	1.5	950	45-70	1.50.91.5
M6-70	6	70	5.5	2.2	1100	45-70	1.6511.6
M6-200	6	200	5.5	2.2	1850	45-60	1.6511.6
M8-80	8	80	7.5	3	1800	45-70	2.31.51.86
M8-150	8	150	11	3	1850	45-70	2.51.51.95
M8-300	8	300	11	3	2200	45-60	2.51.51.95
M10-130	10	130	11	3	1900	45-70	2.551.51.95
M10-220	10	220	11	3	2300	45-70	2.551.51.95
M10-400	10	400	11	3	2650	45-55	2.651.51.95
M10-500	10	500	11	3	3100	35-55	2.751.51.95
M10-620	10	620	11	3	3300	35-55	2.81.51.95
M12-160	12	160	18.5	4	2700	40-60	2.81.52.25
M12-200	12	200	18.5	4	2800	40-60	2.81.52.25
M12-300	12	300	18.5	4	3300	40-60	2.91.52.25
M12-400	12	400	18.5	4	3800	40-55	3.01.52.25
M12-500	12	500	18.5	4	4300	35-45	3.21.52.35
M12-600	12	600	18.5	4	4600	35-45	3.31.52.35
M14-200	14	200	22	5.5	3850	45-60	2.91.52.4
M14-400	14	400	22	5.5	4500	40-55	3.11.52.4
M14-500	14	500	22	5.5	4700	35-45	3.21.52.4
M14-600	14	600	22	5.5	5300	35-45	3.41.52.4
M16-200	16	200	30	7.5	5700	40-50	3.21.952.65
M16-300	16	300	30	7.5	6000	40-50	3.21.952.65
M16-400	16	400	30	7.5	6300	35-45	3.21.952.65
M16-500	16	500	37	7.5	6900	30-40	3.41.952.65
M20-400	20	400	45	11	10000	35-45	3.52.053.2
M20-600	20	600	45	11	11000	30-40	3.72.053.2
M24-600	24	600	45	11	12000	30-40	3.82.23.2
