Energy-Saving U Bolt Making Equipment: Cut Down Your Operational Costs

Brand Name:	Heling Machine
Model Number:	M27-800u
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	20+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

10221508

Name:

U Bolt Making Machine

Usage:

After The Wire Is Input, It Is Automatically Formed, Threaded, And Precisely Cut, Efficiently Producing Finished U-bolts.

Voltage:

380V/440V/415V,50HZ/60HZ

After-sales Service Provided:

Online Support,Video Technical Support

Core Components:

Bearing, Motor, Pump

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Warranty:

1 Year

Package:

Wooden Case

Color:

Customizable

Packaging Details:

wooden box

Supply Ability:

20+SET+PER month

Highlight:

energy-saving U bolt making machine

U bolt forming equipment with warranty

low operational cost U bolt machine

Product Description

Energy-Saving U Bolt Making Equipment: Cut Down Your Operational Costs

Feature:

Reduces secondary processing steps with integrated deburring, streamlining the production workflow.
Complies with global safety standards, ensuring safe operation and avoiding potential workplace hazards.
Enables quick product switching with fast die change, adapting to small-batch and multi-variety production.
Lowers overall production costs by 20% in the long run, maximizing profit margins for businesses.

Specification:

Model	Range of manufacturable diameters (mm)	Customizable length range (mm)	Weight (KG)	Capacity (PCS/mm)
M6	4-6	70-200	1500-2800	40-65
M8	5-8	80-300	2000-3100	40-60
M10	6-10	130-500	2900-4200	25-60
M12	8-12	160-800	3700-11000	25-55
M14	10-14	200-800	4300-12000	25-55
M16	12-16	200-800	6800-13500	25-50
M20	16-20	400-800	12500-18000	25-45
M24	18-24	400-1000	13500-21000	20-40
M27	20-27	400-1000	1400-23000	15-35

Description:

Advantage:

Delivers 30% higher production efficiency compared to semi-automatic U bolt making machines, shortening delivery times.
Ensures ±0.1mm dimensional accuracy for each U bolt, meeting strict industrial quality standards.

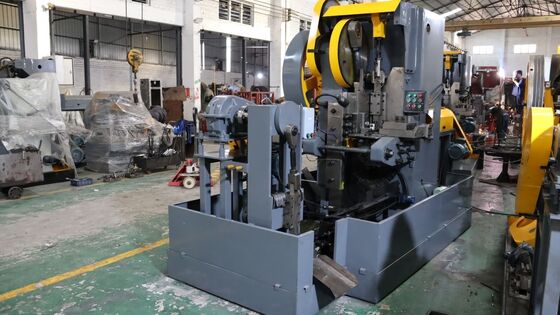

Factory Showcase:

EtiExhibition:
