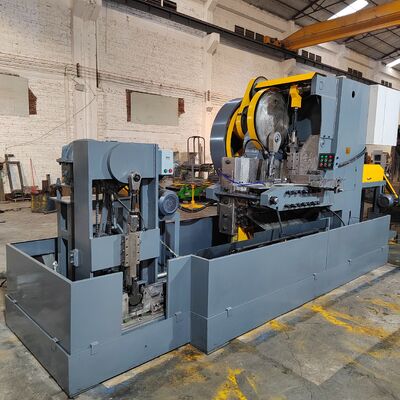

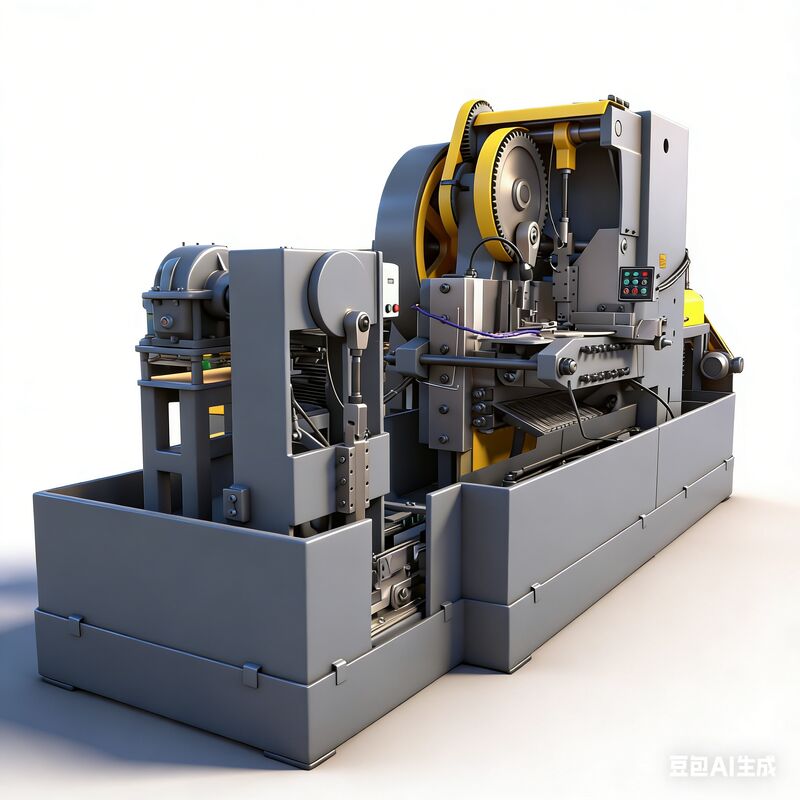

Multi-Functional U Bolt Forming Machine: Handle Different Metal Materials

Brand Name:	Heling Machine
Model Number:	M24-800u
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	20+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

10221508

Name:

U Bolt Making Machine

Usage:

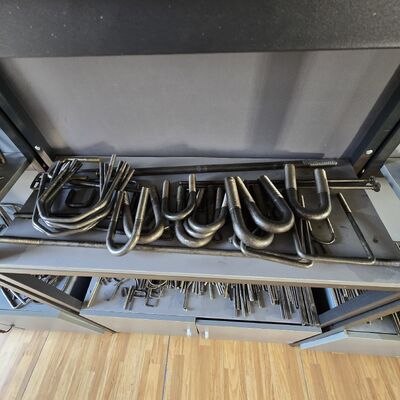

After The Wire Is Input, It Is Automatically Formed, Threaded, And Precisely Cut, Efficiently Producing Finished U-bolts.

Voltage:

380V/440V/415V,50HZ/60HZ

After-sales Service Provided:

Online Support,Video Technical Support

Core Components:

Bearing, Motor, Pump

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Warranty:

1 Year

Package:

Wooden Case

Color:

Customizable

Packaging Details:

wooden box

Supply Ability:

20+SET+PER month

Highlight:

U bolt forming machine for metal

Multi-functional U bolt maker

U bolt machine with warranty

Product Description

Multi-Functional U Bolt Forming Machine: Handle Different Metal Materials

Feature:

One-Click Operation Interface simplifies the production process, requiring minimal operator training.
Automatic Deburring Function ensures smooth edges of finished U bolts, eliminating secondary processing.
Multi-Material Compatibility works with carbon steel, stainless steel, and alloy steel wires.
Real-Time Production Data Display helps track output, efficiency, and material consumption.

Specification:

Model	Max.Thread Diamete (mm)	Max.U-Bolt Blank Length (mm)	Main Motor(KW)	Straighten The Motor(KW)	Froming Motors(KW)	Weight (KG)	Capacity (PCS/mm)	*Volume(LWH)(m)*
M6-200U	6	200	5.5	2.2	2.2	2300	50-70	2.30.91.6
M8-300U	8	300	11	3	3	2800	40-65	3.51.11.95
M10-220U	10	220	11	3	3	3400	40-60	3.61.21.95
M10-300U	10	300	11	3	3	3500	40-60	3.61.21.95
M10-400U	10	400	11	3	3	3800	40-60	3.751.21.95
M10-500U	10	500	11	3	3	4200	40-60	3.91.21.95
M10-620U	10	620	11	3	3	4800	40-60	4.01.21.95
M12-300U	12	300	18.5	4	4	5000	40-55	4.21.42.25
M12-400U	12	400	18.5	4	4	5800	35-50	4.21.42.25
M12-500U	12	500	18.5	4	4	6800	35-45	4.61.52.35
M12-600U	12	600	18.5	4	4	7200	35-45	4.81.52.35
M14-300U	14	300	22	5.5	5.5	6200	35-50	4.31.52.35
M14-400U	14	400	22	5.5	5.5	6800	35-50	4.31.52.35
M14-500U	14	500	22	5.5	5.5	7500	35-50	4.51.52.35
M14-600U	14	600	22	5.5	5.5	7800	35-50	5.01.52.35
M14-800U	14	800	30	5.5	5.5	11000	30-40	5.851.952.65
M16-300U	16	300	30	7.5	7.5	9500	30-45	4.41.952.65
M16-400U	16	400	30	7.5	7.5	10000	30-45	4.51.952.65
M16-500U	16	500	37	7.5	7.5	10800	30-45	5.11.952.65
M16-600U	16	600	37	7.5	7.5	12000	30-45	5.11.952.65
M16-800U	16	800	37	7.5	7.5	16800	25-35	5.91.952.65
M20-400U	20	400	45	11	11	14500	35-45	5.52.053.2
M20-600U	20	600	45	11	11	16000	25-38	6.12.053.2
M20-650U	20	650	45	11	11	16800	25-38	6.12.053.2
M20-800U	20	800	45	11	11	19000	25-30	6.52.253.2
M20-1000U	20	1000	45	11	11	22000	25-30	6.82.253.2
M24-400U	24	400	45	11	11	14500	30-45	5.52.253.2
M24-600U	24	600	45	11	11	17000	25-38	6.12.253.2
M24-800U	24	800	45	11	11	20800	25-30	6.52.253.2
M24-1000U	24	1000	45	11	11	23000	25-30	6.82.353.2

Description:

Advantage:

Comes with comprehensive after-sales service, including on-site installation and technical guidance.
Has a compact design that saves workshop space, allowing for more rational layout of production lines.
Reduces secondary processing steps with integrated deburring, streamlining the production workflow.
