| Brand Name: | Heling Machine |
| Model Number: | D8-300 |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 20+SET+PER month |

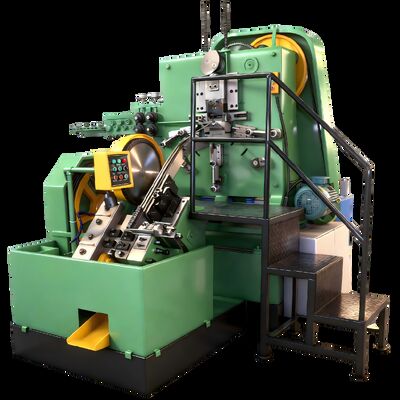

Eye bolt forming machine
Feature:
| Model |
Max.Rod length (mm) |
Max.Cutting Diameter (mm) |
Button Punching Motor (KW) |
Thread Rolling Motor (KW) |
Weight (KG) |
Capacity (PCS/mm) |
Volume (L*W*H) (m) |
| D3-130 | 130 | 3 | 0.75 | 2.2 | 1200 | 100-140 | 1.5*1.6*1.6 |
| D4-160 | 160 | 4 | 1.5 | 4 | 1500 | 100-130 | 1.7*1.8*1.7 |
| D5-200 | 200 | 5.5 | 2.2 | 4 | 1700 | 80-110 | 1.8*2.0*1.8 |
| D8-300 | 300 | 8 | 3 | 11 | 3500 | 60-80 | 2.0*2.0*2.0 |
| D10-130 | 130 | 10 | 3 | 11 | 3500 | 50-60 | 2.15*2.37*2.33 |
| D12-160 | 160 | 12 | 3 | 15 | 3800 | 45-55 | 2.25*2.45*2.5 |
Description:
Advantage:
1.Eye Bolt Forming Machine Core Advantages
2.Ultra-precise dimension control – Ensures bolt thread & shank accuracy meets industrial standards
3.Fully automated workflow – Cuts labor costs by 60% and boosts production efficiency
4.Wide compatibility – Handles diverse eye bolt sizes & materials (steel, stainless steel)
5.Low maintenance design – Heavy-duty components reduce downtime and long-term operating costs

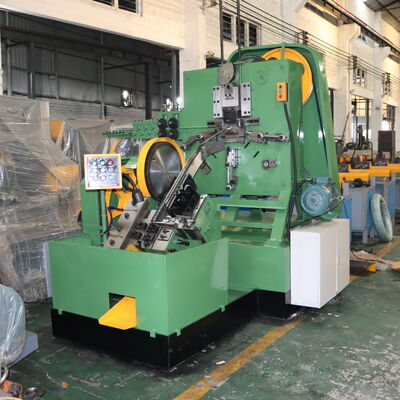

Factory Showcase:
EtiExhibition:
