| Brand Name: | Heling Machine |
| Model Number: | M12-200 |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 20+SET+PER month |
High Precision for Small Specifications

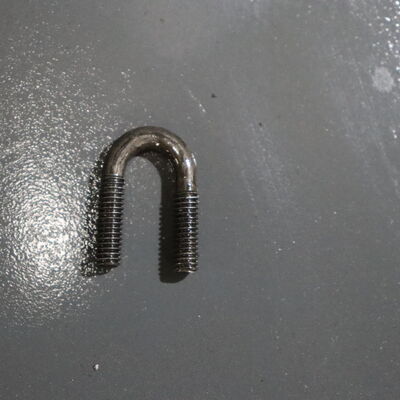

Processes small U-bolts with diameter Φ3–Φ12mm and length 20–100mm, achieving ±0.05mm dimensional tolerance and ±0.5° bending angle accuracy.

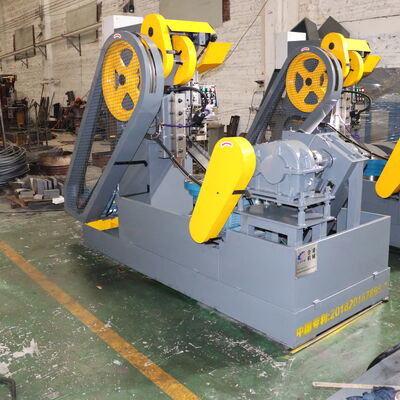

Fully Automated Mini Production Line

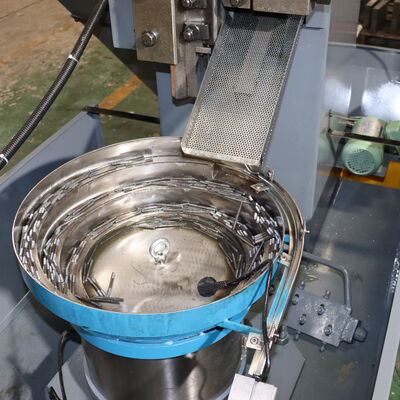

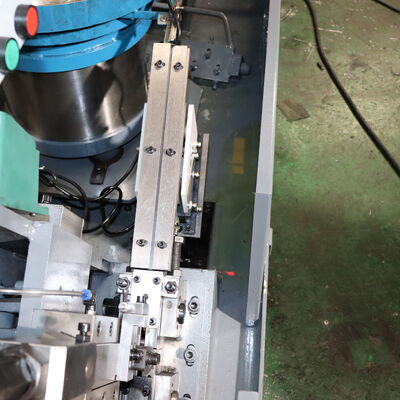

Integrates automatic feeding, straightening, bending, thread rolling (optional), and discharging—one-person operation, no manual intervention.
8-minute Rapid Mold Changeover
Modular tooling design enables quick specification switching, adapting to small-batch, multi-variety small U-bolt orders.
Energy-efficient Mini Servo Drive
Equipped with high-precision micro servo motor, power consumption only 1.5–3kW, reducing energy costs by 30% vs. traditional equipment.
| Model |
Range of manufacturable diameters (mm) |
Customizable length range (mm) |
Weight (KG) |
Capacity (PCS/mm) |
| M6 | 4-6 | 70-200 | 1500-2800 | 40-65 |
| M8 | 5-8 | 80-300 | 2000-3100 | 40-60 |
| M10 | 6-10 | 130-500 | 2900-4200 | 25-60 |
| M12 | 8-12 | 160-800 | 3700-11000 | 25-55 |
| M14 | 10-14 | 200-800 | 4300-12000 | 25-55 |
| M16 | 12-16 | 200-800 | 6800-13500 | 25-50 |
| M20 | 16-20 | 400-800 | 12500-18000 | 25-45 |
| M24 | 18-24 | 400-1000 | 13500-21000 | 20-40 |
| M27 | 20-27 | 400-1000 | 1400-23000 | 15-35 |
High Precision & Stable Quality for Small Parts
±0.05mm dimensional tolerance and ±0.5° bending accuracy ensure consistent quality of small U-bolts; ultra-low scrap rate minimizes raw material waste.
