Fully Automatic Small U-bolt Production Line – Low Scrap Rate

Brand Name:	Heling Machine
Model Number:	M8-150U
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	20+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

10221508

Voltage:

380V/440V/415V,50HZ/60HZ

Usage:

After The Wire Is Input, It Is Automatically Formed, Threaded, And Precisely Cut, Efficiently Producing Finished U-bolts.

Warranty:

1 Year

After-sales Service Provided:

Online Support,Video Technical Support

Core Components:

Bearing, Motor, Pump

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Package:

Wooden Case

Color:

Customizable

Name:

U Bolt Making Machine

Packaging Details:

wooden box

Supply Ability:

20+SET+PER month

Highlight:

fully automatic u bolt making machine

fully automatic u bolt manufacturing machine

380v u bolt making machine

Product Description

Fully Automatic Small U-bolt Production Line – Low Scrap Rate

Feature:

Ultra-low Scrap Rate
Optimized bending and thread forming mechanism minimizes deformation/scratches, controlling scrap rate below 0.2% for small workpieces.
Durable Alloy Core Components
Key parts (bending dies, thread rolling wheels) made of Cr12MoV alloy steel, service life over 8 years, 50% lower wear rate.
Multi-material Compatibility
Suitable for carbon steel, stainless steel, copper, and galvanized wire, meeting small U-bolt needs in electronics, automotive, and hardware industries.
Quiet & Low-vibration Operation
Built-in shock absorption system and precision transmission structure, operating noise ≤70dB, complying with workshop environmental standards.

Specification:

Model	Max.Thread Diamete (mm)	Max.U-Bolt Blank Length (mm)	Main Motor(KW)	Straighten The Motor(KW)	Froming Motors(KW)	Weight (KG)	Capacity (PCS/mm)	*Volume(LWH)(m)*
M5-60U	5	60	4	1.5	1.5	1400	70-90	2.811.8
M6-70U	6	70	5.5	2.2	2.2	1500	70-90	2.351.051.67
M6-150U	6	150	5.5	2.2	2.2	1600	70-90	2.451.051.67
M8-80U	8	80	7.5	3	3	2000	50-70	2.91.11.85
M8-150U	8	150	11	3	3	2400	50-60	31.11.85
M8-200U	8	200	11	3	3	2500	50-60	31.11.85
M10-80U	10	80	7.5	3	3	2100	50-60	3.01.11.85
M10-130U	10	130	11	3	3	2900	50-70	3.11.11.8
M12-160U	12	120	18.5	4	4	3600	50-60	3.31.32.2
M12-200U	12	200	18.5	4	4	3800	50-60	3.31.32.2
M14-200U	14	200	22	5.5	5.5	4300	40-50	3.51.32.35
M16-200U	16	200	30	7.5	7.5	6800	40-50	4.21.92.6

Description:

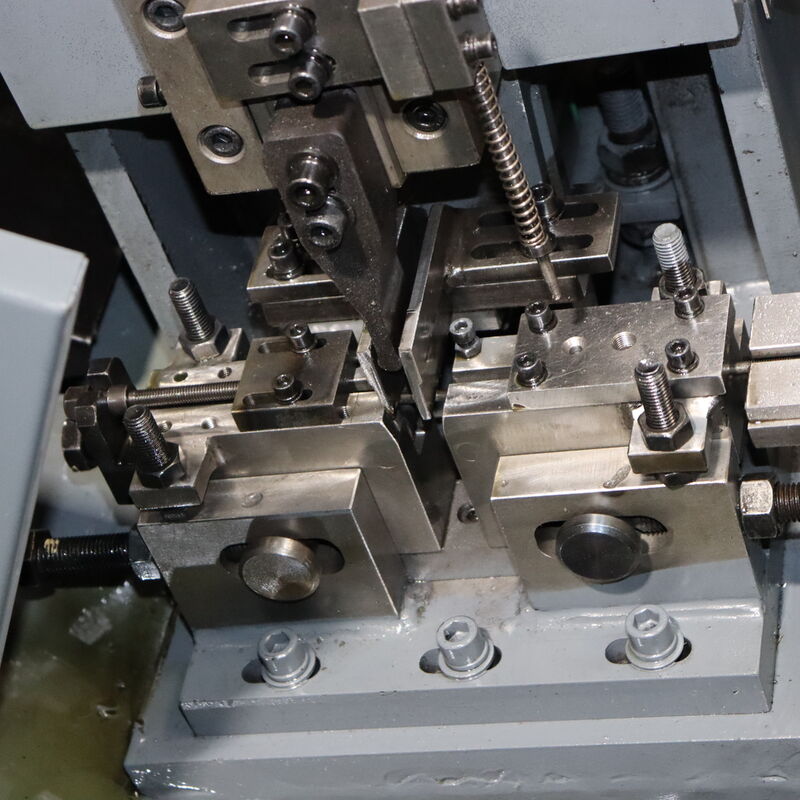

Fully Automatic Small U-bolt Production Line – Low Scrap Rate 0

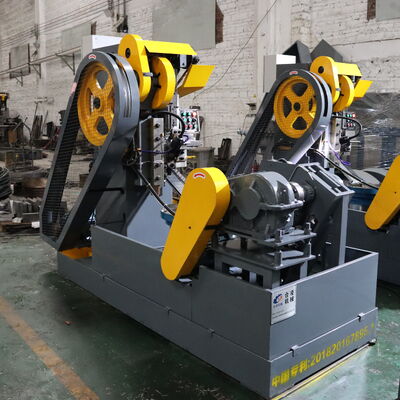

Fully Automatic Small U-bolt Production Line – Low Scrap Rate 1

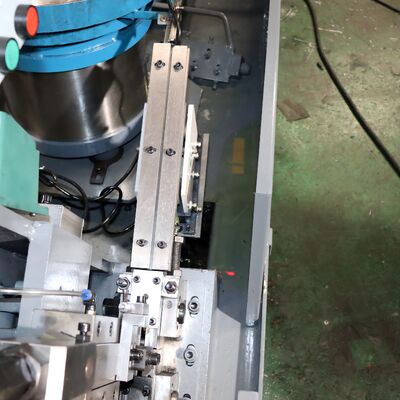

Fully Automatic Small U-bolt Production Line – Low Scrap Rate 2

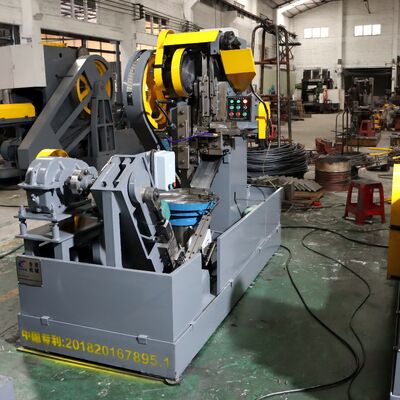

Fully Automatic Small U-bolt Production Line – Low Scrap Rate 3

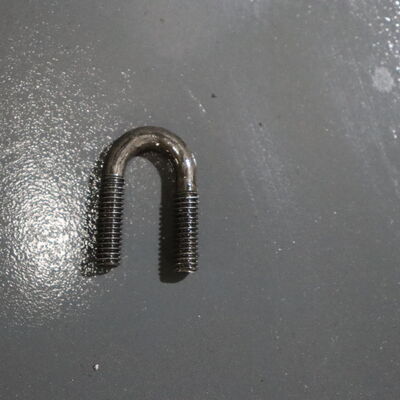

Fully Automatic Small U-bolt Production Line – Low Scrap Rate 4

Fully Automatic Small U-bolt Production Line – Low Scrap Rate 5

Advantage:

Flexible Production & Fast Order Response
Covers Φ3–Φ16mm diameters and 20–100mm lengths; 8-minute mold changeover adapts to small-batch, multi-variety orders, improving market responsiveness.

Factory Showcase:

Fully Automatic Small U-bolt Production Line – Low Scrap Rate 7

Exhibition:

Fully Automatic Small U-bolt Production Line – Low Scrap Rate 8
