| Brand Name: | Heling Machine |
| Model Number: | M8-150U |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 20+SET+PER month |

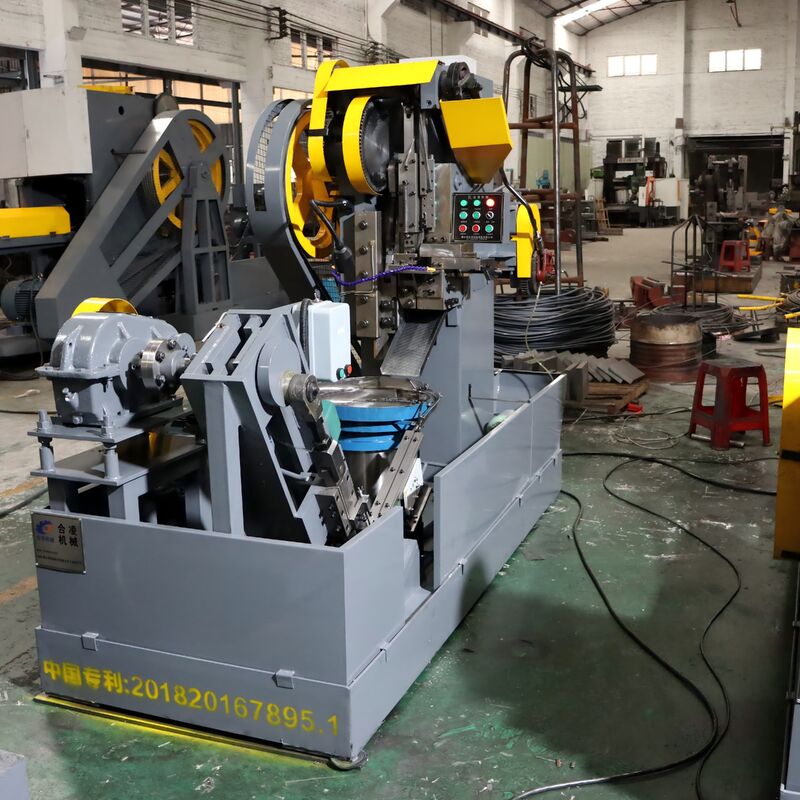

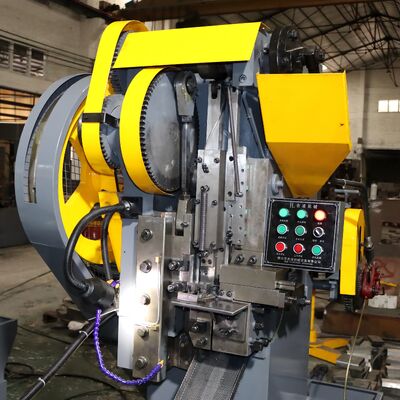

Space-saving Small U-bolt Making Machine (Φ3–Φ16mm)
Feature:
Fully Automated Mini Production Line
Integrates automatic feeding, straightening, bending, thread rolling (optional), and discharging—one-person operation, no manual intervention.

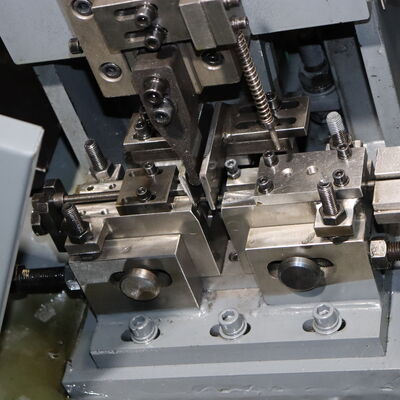

8-minute Rapid Mold Changeover
Modular tooling design enables quick specification switching, adapting to small-batch, multi-variety small U-bolt orders.
Energy-efficient Mini Servo Drive
Equipped with high-precision micro servo motor, power consumption only 1.5–3kW, reducing energy costs by 30% vs. traditional equipment.
Intelligent Touch Screen Operation
User-friendly interface with 12 groups of process parameter storage, real-time display of output/qualified rate, easy for novices to master.
Specification:
| Model |
Max.Thread Diamete (mm) |
Max.U-Bolt Blank Length (mm) |
Main Motor(KW) |
Straighten The Motor(KW) |
Froming Motors(KW) |
Weight (KG) |
Capacity (PCS/mm) |
Volume(L*W*H)(m) |
| M5-60U | 5 | 60 | 4 | 1.5 | 1.5 | 1400 | 70-90 | 2.8*1*1.8 |
| M6-70U | 6 | 70 | 5.5 | 2.2 | 2.2 | 1500 | 70-90 | 2.35*1.05*1.67 |
| M6-150U | 6 | 150 | 5.5 | 2.2 | 2.2 | 1600 | 70-90 | 2.45*1.05*1.67 |
| M8-80U | 8 | 80 | 7.5 | 3 | 3 | 2000 | 50-70 | 2.9*1.1*1.85 |
| M8-150U | 8 | 150 | 11 | 3 | 3 | 2400 | 50-60 | 3*1.1*1.85 |
| M8-200U | 8 | 200 | 11 | 3 | 3 | 2500 | 50-60 | 3*1.1*1.85 |
| M10-80U | 10 | 80 | 7.5 | 3 | 3 | 2100 | 50-60 | 3.0*1.1*1.85 |
| M10-130U | 10 | 130 | 11 | 3 | 3 | 2900 | 50-70 | 3.1*1.1*1.8 |
| M12-160U | 12 | 120 | 18.5 | 4 | 4 | 3600 | 50-60 | 3.3*1.3*2.2 |
| M12-200U | 12 | 200 | 18.5 | 4 | 4 | 3800 | 50-60 | 3.3*1.3*2.2 |
| M14-200U | 14 | 200 | 22 | 5.5 | 5.5 | 4300 | 40-50 | 3.5*1.3*2.35 |
| M16-200U | 16 | 200 | 30 | 7.5 | 7.5 | 6800 | 40-50 | 4.2*1.9*2.6 |
Description:
Advantage:

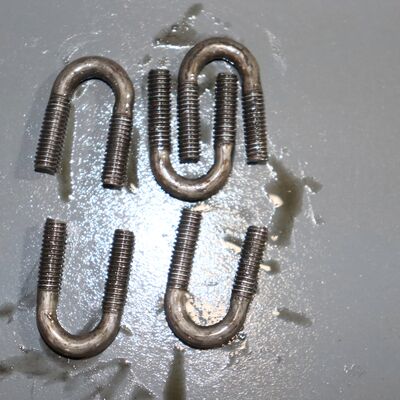

High Precision & Stable Quality for Small Parts
±0.05mm dimensional tolerance and ±0.5° bending accuracy ensure consistent quality of small U-bolts; ultra-low scrap rate minimizes raw material waste.
