| Brand Name: | Heling Machine |
| Model Number: | D5-200 |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 80+SET+PER month |

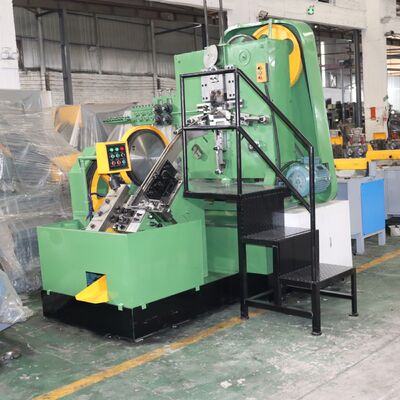

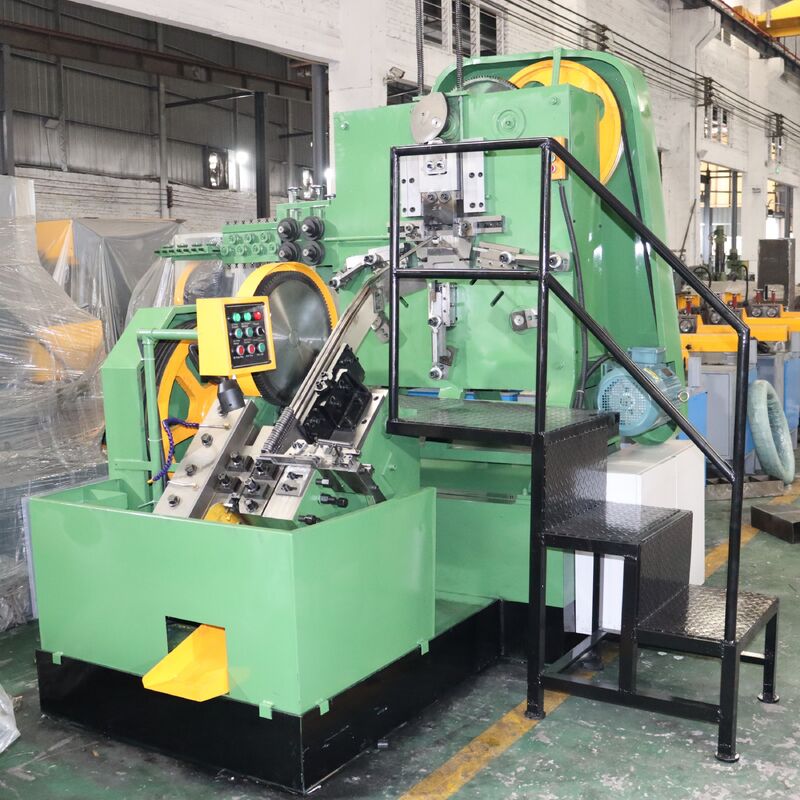

Buckle Making Machine constructed with robust materials to withstand continuous industrial and deliver consistent results
Dual-process Integrated Design

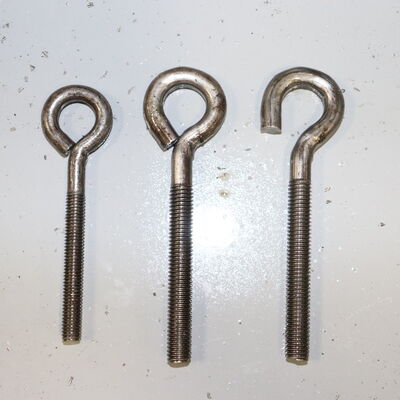

Integrates buckling and thread rolling functions in one unit, eliminating workpiece transfer procedures and shortening processing cycles by over 35%.
High-precision Dimension Control
Buckling angle tolerance of ±0.5° and thread rolling pitch accuracy of ±0.03mm, complying with national and international fastener standards.
Fully Automated Operation Workflow
Realizes automatic feeding, positioning, buckling, thread rolling and discharging, with zero manual intervention throughout the process to reduce human errors.
10-minute Rapid Mold Changeover
Modular mold design enables specification switching in just 10 minutes, adapting to the needs of multi-category small-batch order production.
| Model |
Max.Rod length (mm) |
Max.Cutting Diameter (mm) |
Button Punching Motor (KW) |
Thread Rolling Motor (KW) |
Weight (KG) |
Capacity (PCS/mm) |
Volume (L*W*H) (m) |
| D3-130 | 130 | 3 | 0.75 | 2.2 | 1200 | 100-140 | 1.5*1.6*1.6 |
| D4-160 | 160 | 4 | 1.5 | 4 | 1500 | 100-130 | 1.7*1.8*1.7 |
| D5-200 | 200 | 5.5 | 2.2 | 4 | 1700 | 80-110 | 1.8*2.0*1.8 |
| D8-300 | 300 | 8 | 3 | 11 | 3500 | 60-80 | 2.0*2.0*2.0 |
| D10-130 | 130 | 10 | 3 | 11 | 3500 | 50-60 | 2.15*2.37*2.33 |
| D12-160 | 160 | 12 | 3 | 15 | 3800 | 45-55 | 2.25*2.45*2.5 |
Integrated Processing for Cost Reduction and Efficiency Improvement
Combines buckling and thread rolling into one process, eliminating costs of manual transfer and secondary positioning, increasing overall production efficiency by 40% and cutting labor costs by 60%.
