| Brand Name: | Heling Machine |
| Model Number: | D3-130 |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 80+SET+PER month |

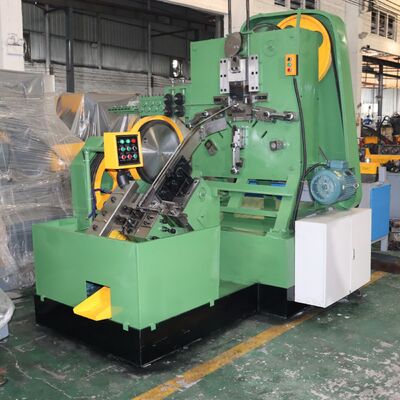

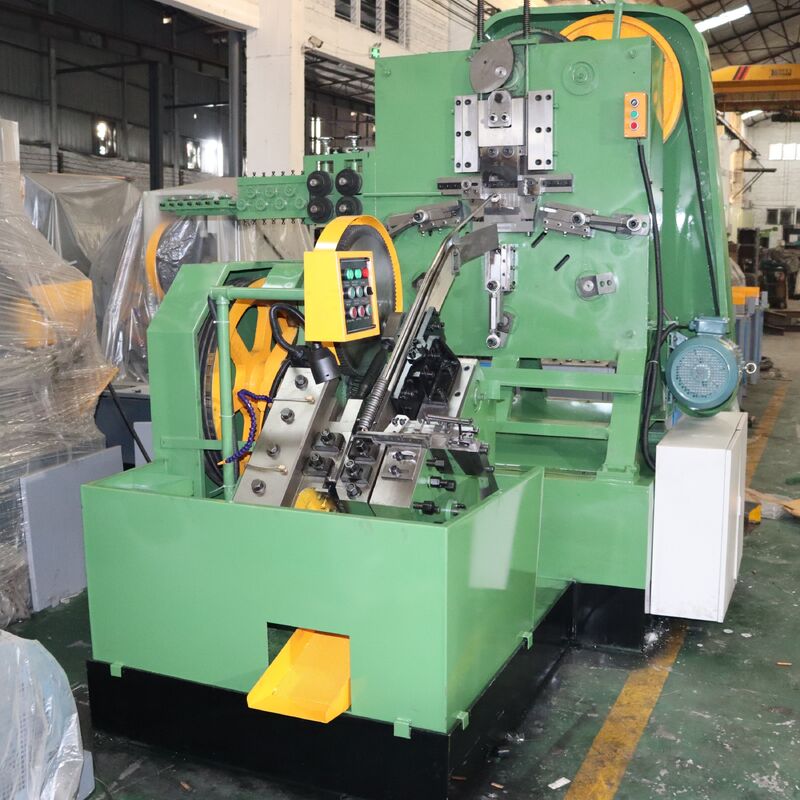

Igh-Yield Eye Bolt Making Machine – Maximize Your Manufacturing Output
Multi-layer Safety Protection Mechanism
Equipped with overload protection, material shortage alarm and protective cover interlock device, automatically stopping operation in case of abnormalities to eliminate safety hazards.
Low-noise Operation Mode
Added shock absorption and noise reduction components, with working noise ≤72dB, meeting workshop environmental protection noise standards.
Compact Footprint Design
The whole machine covers an area of ≤2㎡, featuring a small size that fits the layout of narrow workshops in small and medium-sized factories.
Seamless Assembly Line Connection
Reserved interfaces for upstream and downstream equipment, allowing integration with wire straightening machines and finished product packaging machines to form an automated production line.
| Model |
Max.Rod length (mm) |
Max.Cutting Diameter (mm) |
Button Punching Motor (KW) |
Thread Rolling Motor (KW) |
Weight (KG) |
Capacity (PCS/mm) |
Volume (L*W*H) (m) |
| D3-130 | 130 | 3 | 0.75 | 2.2 | 1200 | 100-140 | 1.5*1.6*1.6 |
| D4-160 | 160 | 4 | 1.5 | 4 | 1500 | 100-130 | 1.7*1.8*1.7 |
| D5-200 | 200 | 5.5 | 2.2 | 4 | 1700 | 80-110 | 1.8*2.0*1.8 |
| D8-300 | 300 | 8 | 3 | 11 | 3500 | 60-80 | 2.0*2.0*2.0 |
| D10-130 | 130 | 10 | 3 | 11 | 3500 | 50-60 | 2.15*2.37*2.33 |
| D12-160 | 160 | 12 | 3 | 15 | 3800 | 45-55 | 2.25*2.45*2.5 |
