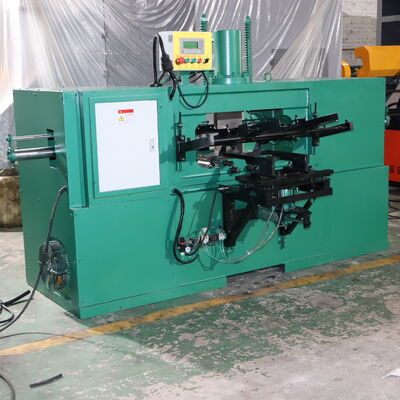

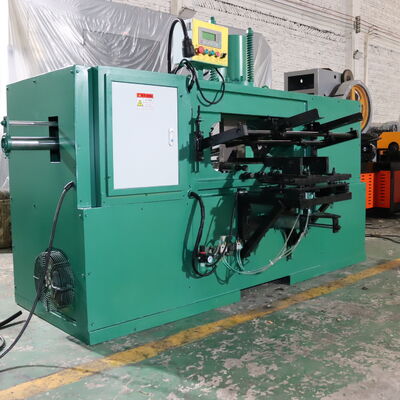

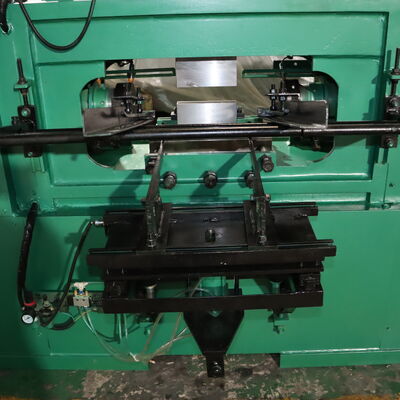

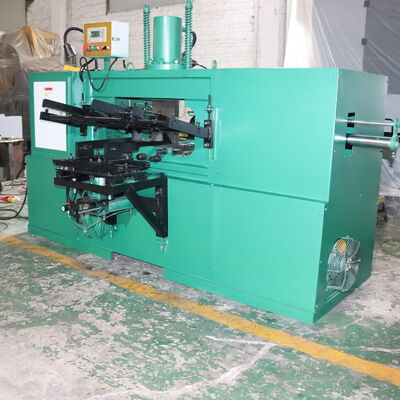

High Speed Wire Reducing Machine Low Maintenance Automatic Feeding

Brand Name:	Heling Machine
Model Number:	SJ-15-D
MOQ:	1pcs
Price:	Welcome to Inquire
Payment Terms:	T/T
Supply Ability:	80+SET+PER month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

10221508

Name:

Wire Reducing Machine

Usage:

Efficient Automation Fully Automatic Continuous Operation, Integrating Multiple Processes Such As Straightening, Cutting, Forming, And Thread Rolling, Significantly Improving Production Efficiency And Reducing Labor Costs. Precision And Reliability Adoptin

Warranty:

1 Year

After-sales Service Provided:

Online Support,Video Technical Support

Core Selling Points:

Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision

Voltage:

380V/440V/415V,50HZ/60HZ

Core Components:

Bearing, Motor, Pump

Package:

Wooden Case

Color:

Customizable

Packaging Details:

wooden box

Supply Ability:

80+SET+PER month

Highlight:

High Speed Wire Reducing Machine

Wire Reducing Machine Low Maintenance

Wire Diameter Reduction Machine Automatic Feeding

Product Description

High Speed Wire Reducing Machine with Stable Low Maintenance and Automatic Feeding for Steel Copper Aluminum Wire Diameter Reduction

Feature:

High-precision Diameter Reduction
Achieves diameter tolerance ±0.01mm and uniform reduction ratio (5%–30%), complying with DIN/ANSI/ISO standards for precision wire applications.
Multi-pass Rolling Integration
Integrates 3–6 pass rolling stations in one machine, realizing continuous diameter reduction without intermediate processing, improving production efficiency by 50%.
Fully Automated Workflow
Automates wire feeding, straightening, rolling, cooling, and take-up—zero manual intervention, minimizing human-induced errors.
Wide Wire Diameter Adaptability
Processes raw wire diameters Φ2–Φ20mm, reducing to Φ1–Φ15mm, covering diverse industrial wire requirements (e.g., automotive, electronics, hardware).

Specification:

Model	Range of manufacturable diameters (mm)	Customizable length range (mm)	Weight (KG)	Capacity (PCS/mm)
SJ-12	6-12	100-1000	3500	20-45
SJ-20	12-20	100-1500	8500	10-30

Description:

High Speed Wire Reducing Machine Low Maintenance Automatic Feeding 0

Advantage:

High Precision & Stable Quality
±0.01mm diameter tolerance and Ra ≤0.8μm surface smoothness ensure consistent wire quality; multi-pass rolling minimizes material deformation, reducing scrap rate below 0.3%.

Factory Showcase:

High Speed Wire Reducing Machine Low Maintenance Automatic Feeding 8
