| Brand Name: | Heling Machine |
| Model Number: | CH4-120 |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 80+SET+PER month |

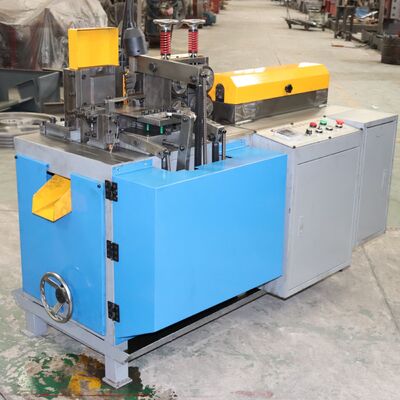

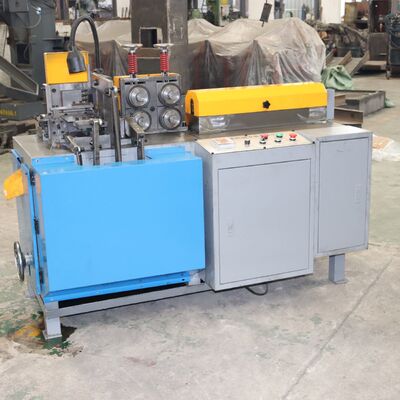

Pin Making Machine capable of producing pins from various raw materials with consistent dimensions and smooth finishes
Feature:
High-speed Precision Production
Processes 80–200 pins per minute, with length tolerance ±0.05mm and diameter accuracy ±0.03mm, meeting DIN/ANSI/ISO standards.
Fully Automated Workflow
Integrates automatic feeding, cutting, straightening, chamfering (optional), and discharging—zero manual intervention during production.
Rapid Mold Changeover
Modular tooling design enables specification switching in 8 minutes, adapting to pin diameters Φ1–Φ12mm and lengths 10–200mm.
Multi-material Compatibility
Suitable for carbon steel, stainless steel, copper, aluminum, and galvanized wire, covering diverse industrial pin requirements.
Specification:
| Model |
Max.Thread Diamete (mm) |
Max.U-Bolt Blank Length (mm) |
Motor (KW) |
Weight (KG) |
Capacity (PCS/mm)(Adjustable) |
Volume(L*W*H) (m) |
| CH4-120 | 1-4 | 120 | 4 | 850 | 20-230 | 1.78*0.87*1.2 |
| CH6-150 | 4-6 | 150 | 5.5 | 950 | 20-210 | 1.78*0.89*1.2 |
Description:
Advantage:
Safe, Durable & Easy Integration
Multi-layer safety protection and heavy-duty structure ensure stable operation; compact size and standardized interfaces enable seamless integration into automated production lines, supporting capacity expansion.
