High Precision Thread Forming Machine Automation Straightening Cutting Machine

Brand Name: Heling Machine
Model Number: M14-400
MOQ: 1pcs
Price: Welcome to Inquire
Payment Terms: T/T
Supply Ability: 80+SET+PER month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
10221508
Name:
Thread Forming Machine
Voltage:
380V/440V/415V,50HZ/60HZ
Usage:
Efficient Automation Fully Automatic Continuous Operation, Integrating Multiple Processes Such As Straightening, Cutting, Forming, And Thread Rolling, Significantly Improving Production Efficiency And Reducing Labor Costs. Precision And Reliability Adoptin
Warranty:
1 Year
After-sales Service Provided:
Online Support,Video Technical Support
Core Components:
Bearing, Motor, Pump
Core Selling Points:
Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision
Package:
Wooden Case
Color:
Customizable
Packaging Details:
wooden box
Supply Ability:
80+SET+PER month
Highlight:

High precision Thread Forming Machine

,

Thread Forming Machine Automation

,

Automation Straightening Cutting Machine

Product Description

High precision Thread Forming Machine capable of producing complex thread geometries improving assembly reliability and strength

Advanced automated solution integrating straightening, cutting, and thread forming processes for maximum efficiency and precision.
Key Features
  1. Frequency Conversion Speed Regulation
    Adjustable processing speed according to material types, reducing energy consumption by 28% vs. fixed-speed models.
  2. Intelligent Touch Screen Control

    User-friendly interface for parameter setting, real-time production data display and data export function.
  3. Ultra-low Rejection Rate

    Optimized process design controls overall defect rate below 0.2%, minimizing material waste.
  4. Heavy-duty Alloy Steel Structure

    Key components are forged from high-strength alloy steel, with a service life of over 10 years.
Technical Specifications
Model Manufacturable Diameter Range (mm) Customizable Length Range (mm) Weight (KG) Capacity (PCS/min)
M6 4-6 70-200 1000-2000 40-65
M8 5-8 80-300 1700-2400 40-60
M10 6-10 130-500 2200-3200 25-60
M12 8-12 160-800 3000-8500 25-55
M14 10-14 200-800 3800-8600 25-55
M16 12-16 200-800 4200-7800 25-50
M20 16-20 400-800 9500-15000 25-45
M24 18-24 400-1000 10000-15000 20-40
M27 20-27 400-1000 10500-15000 15-35
Product Gallery

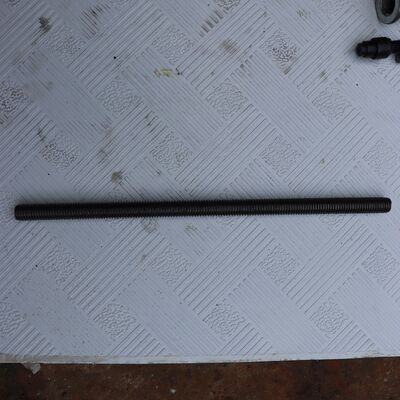

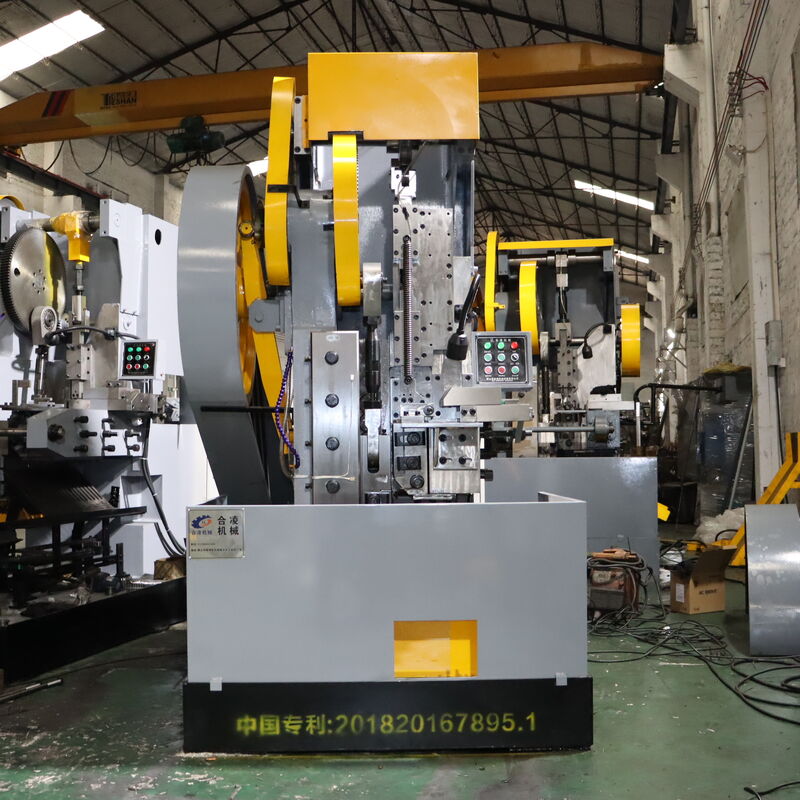

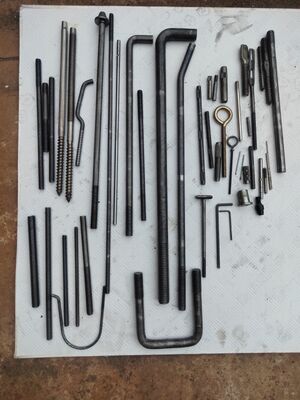

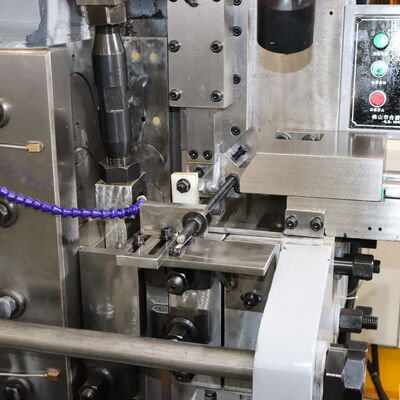

High Precision Thread Forming Machine Automation Straightening Cutting Machine 0 High Precision Thread Forming Machine Automation Straightening Cutting Machine 1 High Precision Thread Forming Machine Automation Straightening Cutting Machine 2 High Precision Thread Forming Machine Automation Straightening Cutting Machine 3 High Precision Thread Forming Machine Automation Straightening Cutting Machine 4 High Precision Thread Forming Machine Automation Straightening Cutting Machine 5 High Precision Thread Forming Machine Automation Straightening Cutting Machine 6
Key Advantages
  1. High Precision & Low Waste, Stable Product Quality

    Maintains ±0.03mm cutting tolerance and uniform thread forming; the overall rejection rate is controlled below 0.2%, ensuring consistent quality and reducing material waste costs.
Factory & Exhibition Showcase
High Precision Thread Forming Machine Automation Straightening Cutting Machine 7 High Precision Thread Forming Machine Automation Straightening Cutting Machine 8
