| Brand Name: | Heling Machine |
| Model Number: | M16-400 |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 80+SET+PER month |

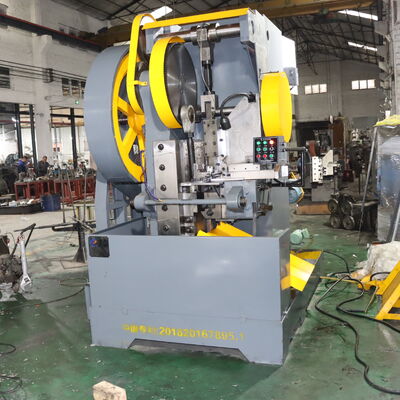

One-key Automatic Operation
Realizes automatic feeding, positioning, cutting, threading and discharging without manual intervention.
10-minute Rapid Die Change
Tooling replacement is simple and fast, adapting to multi-spec batch production needs efficiently.
Frequency Conversion Speed Regulation
Adjustable processing speed according to material types, reducing energy consumption by 28% vs. fixed-speed models.
Intelligent Touch Screen Control
User-friendly interface for parameter setting, real-time production data display and data export function.
| Model |
Max.Thread Diamete (mm) |
Max.U-Bolt Blank Length (mm) |
Main Motor(KW) |
Straighten The Motor(KW) |
Weight (KG) |
Capacity (PCS/mm) |
Volume(L*W*H)(m) |
| M5-60 | 5 | 60 | 4 | 1.5 | 950 | 45-70 | 1.5*0.9*1.5 |
| M6-70 | 6 | 70 | 5.5 | 2.2 | 1100 | 45-70 | 1.65*1*1.6 |
| M6-200 | 6 | 200 | 5.5 | 2.2 | 1850 | 45-60 | 1.65*1*1.6 |
| M8-80 | 8 | 80 | 7.5 | 3 | 1800 | 45-70 | 2.3*1.5*1.86 |
| M8-150 | 8 | 150 | 11 | 3 | 1850 | 45-70 | 2.5*1.5*1.95 |
| M8-300 | 8 | 300 | 11 | 3 | 2200 | 45-60 | 2.5*1.5*1.95 |
| M10-130 | 10 | 130 | 11 | 3 | 1900 | 45-70 | 2.55*1.5*1.95 |
| M10-220 | 10 | 220 | 11 | 3 | 2300 | 45-70 | 2.55*1.5*1.95 |
|
M10-400 |
10 | 400 | 11 | 3 | 2650 | 45-55 | 2.65*1.5*1.95 |
|
M10-500 |
10 | 500 | 11 | 3 | 3100 | 35-55 | 2.75*1.5*1.95 |
|
M10-620 |
10 | 620 | 11 | 3 | 3300 | 35-55 | 2.8*1.5*1.95 |
|
M12-160 |
12 | 160 | 18.5 | 4 | 2700 | 40-60 | 2.8*1.5*2.25 |
|
M12-200 |
12 | 200 | 18.5 | 4 | 2800 | 40-60 | 2.8*1.5*2.25 |
|
M12-300 |
12 | 300 | 18.5 | 4 | 3300 | 40-60 | 2.9*1.5*2.25 |
|
M12-400 |
12 | 400 | 18.5 | 4 | 3800 | 40-55 | 3.0*1.5*2.25 |
|
M12-500 |
12 | 500 | 18.5 | 4 | 4300 | 35-45 | 3.2*1.5*2.35 |
|
M12-600 |
12 | 600 | 18.5 | 4 | 4600 | 35-45 | 3.3*1.5*2.35 |
|
M14-200 |
14 | 200 | 22 | 5.5 | 3850 | 45-60 | 2.9*1.5*2.4 |
|
M14-400 |
14 | 400 | 22 | 5.5 | 4500 | 40-55 | 3.1*1.5*2.4 |
|
M14-500 |
14 | 500 | 22 | 5.5 | 4700 | 35-45 | 3.2*1.5*2.4 |
|
M14-600 |
14 | 600 | 22 | 5.5 | 5300 | 35-45 | 3.4*1.5*2.4 |
|
M16-200 |
16 | 200 | 30 | 7.5 | 5700 | 40-50 | 3.2*1.95*2.65 |
|
M16-300 |
16 | 300 | 30 | 7.5 | 6000 | 40-50 | 3.2*1.95*2.65 |
|
M16-400 |
16 | 400 | 30 | 7.5 | 6300 | 35-45 | 3.2*1.95*2.65 |
|
M16-500 |
16 | 500 | 37 | 7.5 | 6900 | 30-40 | 3.4*1.95*2.65 |
|
M20-400 |
20 | 400 | 45 | 11 | 10000 | 35-45 | 3.5*2.05*3.2 |
|
M20-600 |
20 | 600 | 45 | 11 | 11000 | 30-40 | 3.7*2.05*3.2 |
|
M24-600 |
24 | 600 | 45 | 11 | 12000 | 30-40 | 3.8*2.2*3.2 |
