| Brand Name: | Heling Machine |
| Model Number: | M24-400U |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 20+SET+PER month |
Feature:
1.Built-in Fault Alarm, High Safety
Automatically stops running and triggers alarms in case of material shortage or abnormal operation, avoiding equipment damage and safety hazards.
2.Durable Structure, Low Maintenance Cost
Key components are made of high-hardness alloy steel, with a service life of over 8 years; routine maintenance only needs simple lubrication.
3.Stable Performance, Low Rejection Rate
Optimized transmission mechanism reduces workpiece deformation; the overall rejection rate is controlled below 0.3%.
4.Space-saving Layout, Easy Integration
Compact machine structure, suitable for assembly line integration; can be customized with connecting devices for upstream and downstream processes.
Specification:
| Model |
Max.Thread Diamete (mm) |
Max.U-Bolt Blank Length (mm) |
Main Motor(KW) |
Straighten The Motor(KW) |
Froming Motors(KW) |
Weight (KG) |
Capacity (PCS/mm) |
Volume(L*W*H)(m) |
| M6-200U | 6 | 200 | 5.5 | 2.2 | 2.2 | 2300 | 50-70 | 2.3*0.9*1.6 |
| M8-300U | 8 | 300 | 11 | 3 | 3 | 2800 | 40-65 | 3.5*1.1*1.95 |
| M10-220U | 10 | 220 | 11 | 3 | 3 | 3400 | 40-60 | 3.6*1.2*1.95 |
| M10-300U | 10 | 300 | 11 | 3 | 3 | 3500 | 40-60 | 3.6*1.2*1.95 |
| M10-400U | 10 | 400 | 11 | 3 | 3 | 3800 | 40-60 | 3.75*1.2*1.95 |
| M10-500U | 10 | 500 | 11 | 3 | 3 | 4200 | 40-60 | 3.9*1.2*1.95 |
| M10-620U | 10 | 620 | 11 | 3 | 3 | 4800 | 40-60 | 4.0*1.2*1.95 |
| M12-300U | 12 | 300 | 18.5 | 4 | 4 | 5000 | 40-55 | 4.2*1.4*2.25 |
|
M12-400U |
12 | 400 | 18.5 | 4 | 4 | 5800 | 35-50 | 4.2*1.4*2.25 |
|
M12-500U |
12 | 500 | 18.5 | 4 | 4 | 6800 | 35-45 | 4.6*1.5*2.35 |
|
M12-600U |
12 | 600 | 18.5 | 4 | 4 | 7200 | 35-45 | 4.8*1.5*2.35 |
|
M14-300U |
14 | 300 | 22 | 5.5 | 5.5 | 6200 | 35-50 | 4.3*1.5*2.35 |
|
M14-400U |
14 | 400 | 22 | 5.5 | 5.5 | 6800 | 35-50 | 4.3*1.5*2.35 |
|
M14-500U |
14 | 500 | 22 | 5.5 | 5.5 | 7500 | 35-50 | 4.5*1.5*2.35 |
|
M14-600U |
14 | 600 | 22 | 5.5 | 5.5 | 7800 | 35-50 | 5.0*1.5*2.35 |
|
M14-800U |
14 | 800 | 30 | 5.5 | 5.5 | 11000 | 30-40 | 5.85*1.95*2.65 |
|
M16-300U |
16 | 300 | 30 | 7.5 | 7.5 | 9500 | 30-45 | 4.4*1.95*2.65 |
|
M16-400U |
16 | 400 | 30 | 7.5 | 7.5 | 10000 | 30-45 | 4.5*1.95*2.65 |
|
M16-500U |
16 | 500 | 37 | 7.5 | 7.5 | 10800 | 30-45 | 5.1*1.95*2.65 |
|
M16-600U |
16 | 600 | 37 | 7.5 | 7.5 | 12000 | 30-45 | 5.1*1.95*2.65 |
|
M16-800U |
16 | 800 | 37 | 7.5 | 7.5 | 16800 | 25-35 | 5.9*1.95*2.65 |
|
M20-400U |
20 | 400 | 45 | 11 | 11 | 14500 | 35-45 | 5.5*2.05*3.2 |
|
M20-600U |
20 | 600 | 45 | 11 | 11 | 16000 | 25-38 | 6.1*2.05*3.2 |
|
M20-650U |
20 | 650 | 45 | 11 | 11 | 16800 | 25-38 | 6.1*2.05*3.2 |
|
M20-800U |
20 | 800 | 45 | 11 | 11 | 19000 | 25-30 | 6.5*2.25*3.2 |
|
M20-1000U |
20 | 1000 | 45 | 11 | 11 | 22000 | 25-30 | 6.8*2.25*3.2 |
|
M24-400U |
24 | 400 | 45 | 11 | 11 | 14500 | 30-45 | 5.5*2.25*3.2 |
|
M24-600U |
24 | 600 | 45 | 11 | 11 | 17000 | 25-38 | 6.1*2.25*3.2 |
|
M24-800U |
24 | 800 | 45 | 11 | 11 | 20800 | 25-30 | 6.5*2.25*3.2 |
|
M24-1000U |
24 | 1000 | 45 | 11 | 11 | 23000 | 25-30 | 6.8*2.35*3.2 |
Description:
Advantage:

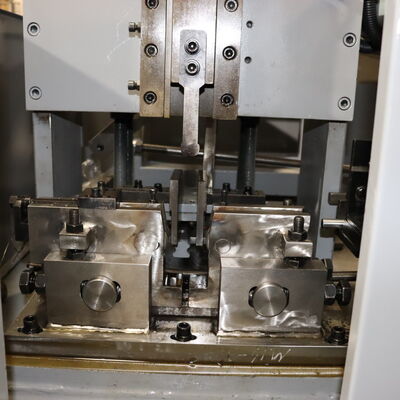

Heling U-bolt equipment is equipped with patented dual molds, increasing efficiency by over 50%, reducing floor space by 30%, ensuring stable forming and strong consistency.
Fully automatic integrated operation, with a production capacity of 50-60 pieces per minute for M5-M12 specifications, saving 70% of labor and suitable for mass production.
Simple operation + cam transmission, with a precision of ±0.01mm, mark-free forming, low failure rate, meeting the quality requirements of high-end industries.

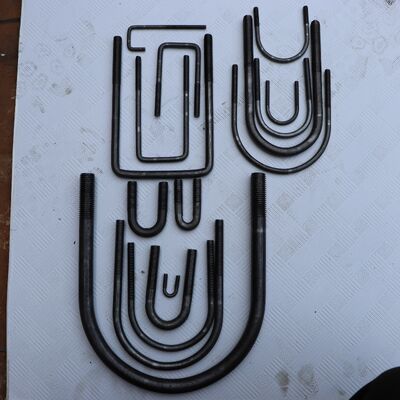

Suitable for diameters of 5-30mm, multi-shape customization, mold change in 10-30 minutes, energy saving of over 20%, adapting to the differentiated needs of multiple industries.
