| Brand Name: | Heling Machine |
| Model Number: | M24-600U |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 20+SET+PER month |

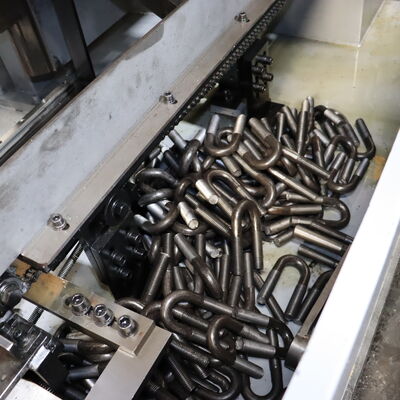

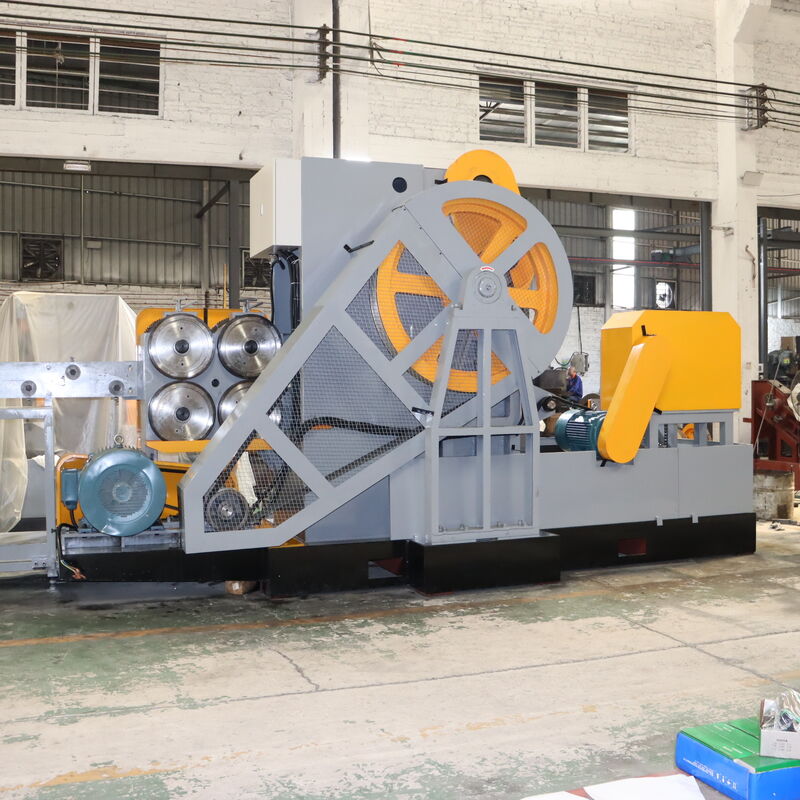

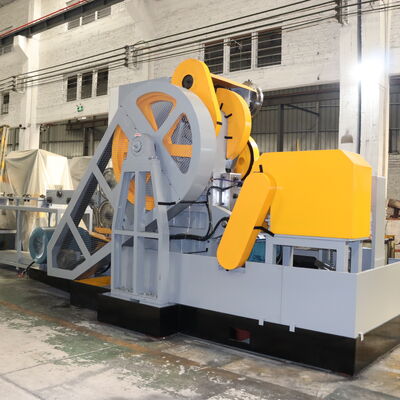

Durable Square U Bolt Making Machine designed to manufacture strong and U bolts meeting diverse construction and automotive standards
Feature:
Multi-protection Safety Design
Built-in sensors for material shortage, overload and misalignment; the machine stops instantly and alarms to prevent equipment damage and accidents.
Heavy duty Durable Construction
Key parts are forged from high-strength alloy steel, with a service life of over 8 years and a 50% lower failure rate than ordinary equipment.
Minimal Rejection Rate
Optimized bending and thread rolling process reduces workpiece deformation; the overall rejection rate is strictly controlled below 0.3%.
Seamless Assembly Line Integration
Compact structure with customizable interfaces for connecting upstream wire straightening machines and downstream packaging equipment.
Specification:
| Model |
Max.Thread Diamete (mm) |
Max.U-Bolt Blank Length (mm) |
Main Motor(KW) |
Straighten The Motor(KW) |
Froming Motors(KW) |
Weight (KG) |
Capacity (PCS/mm) |
Volume(L*W*H)(m) |
| M6-200U | 6 | 200 | 5.5 | 2.2 | 2.2 | 2300 | 50-70 | 2.3*0.9*1.6 |
| M8-300U | 8 | 300 | 11 | 3 | 3 | 2800 | 40-65 | 3.5*1.1*1.95 |
| M10-220U | 10 | 220 | 11 | 3 | 3 | 3400 | 40-60 | 3.6*1.2*1.95 |
| M10-300U | 10 | 300 | 11 | 3 | 3 | 3500 | 40-60 | 3.6*1.2*1.95 |
| M10-400U | 10 | 400 | 11 | 3 | 3 | 3800 | 40-60 | 3.75*1.2*1.95 |
| M10-500U | 10 | 500 | 11 | 3 | 3 | 4200 | 40-60 | 3.9*1.2*1.95 |
| M10-620U | 10 | 620 | 11 | 3 | 3 | 4800 | 40-60 | 4.0*1.2*1.95 |
| M12-300U | 12 | 300 | 18.5 | 4 | 4 | 5000 | 40-55 | 4.2*1.4*2.25 |
|
M12-400U |
12 | 400 | 18.5 | 4 | 4 | 5800 | 35-50 | 4.2*1.4*2.25 |
|
M12-500U |
12 | 500 | 18.5 | 4 | 4 | 6800 | 35-45 | 4.6*1.5*2.35 |
|
M12-600U |
12 | 600 | 18.5 | 4 | 4 | 7200 | 35-45 | 4.8*1.5*2.35 |
|
M14-300U |
14 | 300 | 22 | 5.5 | 5.5 | 6200 | 35-50 | 4.3*1.5*2.35 |
|
M14-400U |
14 | 400 | 22 | 5.5 | 5.5 | 6800 | 35-50 | 4.3*1.5*2.35 |
|
M14-500U |
14 | 500 | 22 | 5.5 | 5.5 | 7500 | 35-50 | 4.5*1.5*2.35 |
|
M14-600U |
14 | 600 | 22 | 5.5 | 5.5 | 7800 | 35-50 | 5.0*1.5*2.35 |
|
M14-800U |
14 | 800 | 30 | 5.5 | 5.5 | 11000 | 30-40 | 5.85*1.95*2.65 |
|
M16-300U |
16 | 300 | 30 | 7.5 | 7.5 | 9500 | 30-45 | 4.4*1.95*2.65 |
|
M16-400U |
16 | 400 | 30 | 7.5 | 7.5 | 10000 | 30-45 | 4.5*1.95*2.65 |
|
M16-500U |
16 | 500 | 37 | 7.5 | 7.5 | 10800 | 30-45 | 5.1*1.95*2.65 |
|
M16-600U |
16 | 600 | 37 | 7.5 | 7.5 | 12000 | 30-45 | 5.1*1.95*2.65 |
|
M16-800U |
16 | 800 | 37 | 7.5 | 7.5 | 16800 | 25-35 | 5.9*1.95*2.65 |
|
M20-400U |
20 | 400 | 45 | 11 | 11 | 14500 | 35-45 | 5.5*2.05*3.2 |
|
M20-600U |
20 | 600 | 45 | 11 | 11 | 16000 | 25-38 | 6.1*2.05*3.2 |
|
M20-650U |
20 | 650 | 45 | 11 | 11 | 16800 | 25-38 | 6.1*2.05*3.2 |
|
M20-800U |
20 | 800 | 45 | 11 | 11 | 19000 | 25-30 | 6.5*2.25*3.2 |
|
M20-1000U |
20 | 1000 | 45 | 11 | 11 | 22000 | 25-30 | 6.8*2.25*3.2 |
|
M24-400U |
24 | 400 | 45 | 11 | 11 | 14500 | 30-45 | 5.5*2.25*3.2 |
|
M24-600U |
24 | 600 | 45 | 11 | 11 | 17000 | 25-38 | 6.1*2.25*3.2 |
|
M24-800U |
24 | 800 | 45 | 11 | 11 | 20800 | 25-30 | 6.5*2.25*3.2 |
|
M24-1000U |
24 | 1000 | 45 | 11 | 11 | 23000 | 25-30 | 6.8*2.35*3.2 |
Description:
Advantage:
Energy-saving & Low Maintenance Cost
Adopts frequency conversion speed regulation technology to save 25% energy; key components are made of high-hardness alloy steel, with 8+ years of service life and only simple lubrication required for routine maintenance.

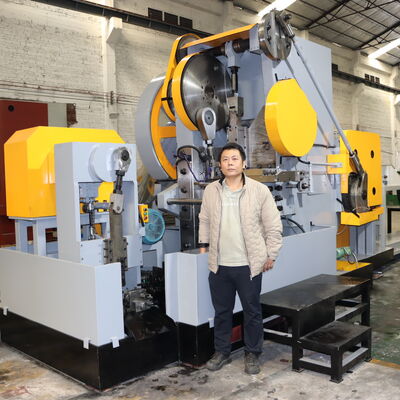

Factory Showcase:
