| Brand Name: | Heling Machine |
| Model Number: | M30-600U |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 20+SET+PER month |

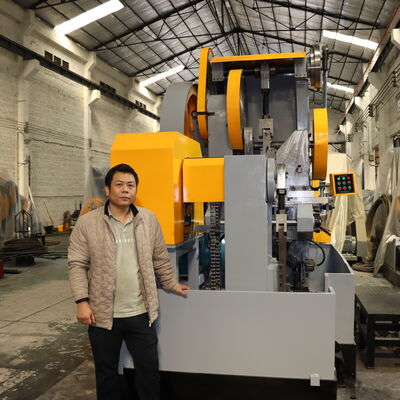

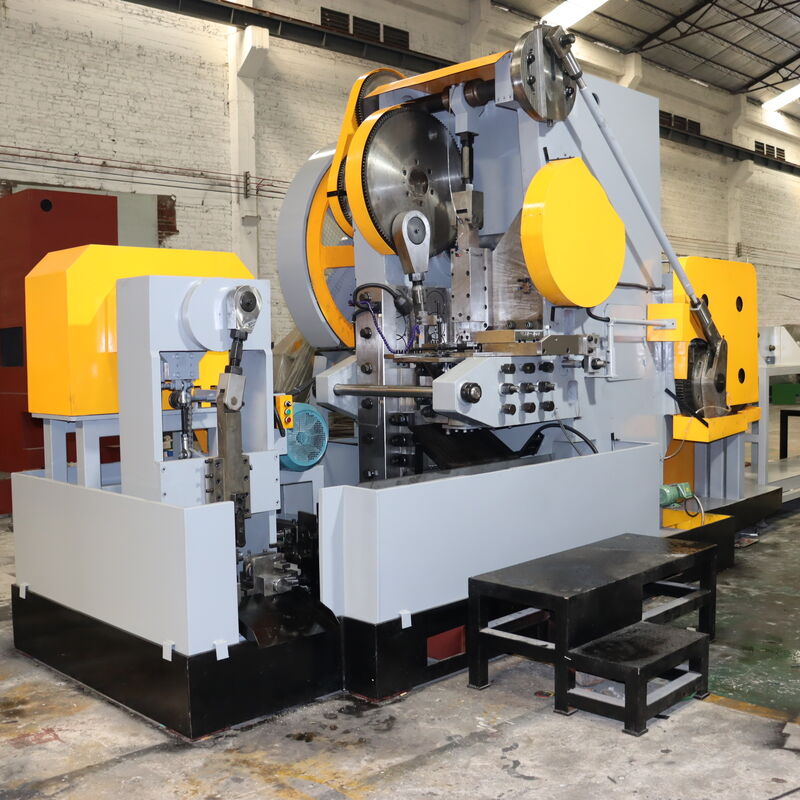

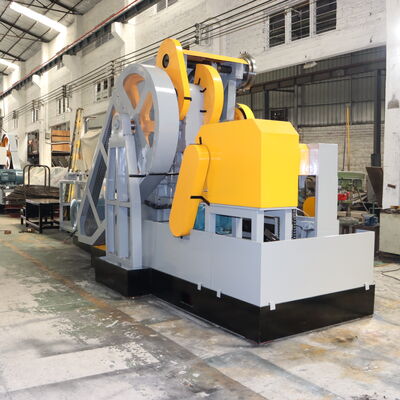

Heavy Duty U Bolt Making Machine Built to Withstand Demanding Production Environments and High Volume Output
Feature:
Full Automation & Labor Cost Optimization
Integrates automatic feeding, bending, thread rolling and discharging in one line; only 1 staff is needed for supervision, cutting labor costs by 60% compared with semi-automatic models.
High Precision & Ultra-low Rejection Rate
Achieves ±0.05mm dimensional tolerance and uniform thread forming; optimized transmission structure minimizes workpiece deformation, with the overall rejection rate controlled below 0.3%.
Multi-spec Adaptability & Quick Changeover
Compatible with U-bolts of M6–M30 diameters and 50–500mm lengths; die replacement can be completed within 10 minutes, flexibly matching small-batch and mass production orders.
Energy-saving & Low Maintenance Cost
Adopts frequency conversion speed regulation technology to save 25% energy; key components are made of high-hardness alloy steel, with 8+ years of service life and only simple lubrication required for routine maintenance.
Specification:
| Model |
Range of manufacturable diameters (mm) |
Customizable length range (mm) |
Weight (KG) |
Capacity (PCS/mm) |
| M6 | 4-6 | 70-200 | 1500-2800 | 40-65 |
| M8 | 5-8 | 80-300 | 2000-3100 | 40-60 |
| M10 | 6-10 | 130-500 | 2900-4200 | 25-60 |
| M12 | 8-12 | 160-800 | 3700-11000 | 25-55 |
| M14 | 10-14 | 200-800 | 4300-12000 | 25-55 |
| M16 | 12-16 | 200-800 | 6800-13500 | 25-50 |
| M20 | 16-20 | 400-800 | 12500-18000 | 25-45 |
| M24 | 18-24 | 400-1000 | 13500-21000 | 20-40 |
| M27 | 20-27 | 400-1000 | 1400-23000 | 15-35 |
Description:
Advantage:
Intelligent Operation & Safe Production
Equipped with a user-friendly touch screen for parameter setting and data tracking; built-in fault alarm system automatically stops the machine in case of abnormalities, eliminating potential safety hazards.
Factory Showcase:
EtiExhibition:
