Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing

Brand Name: Heling Machine
Model Number: M10-400
MOQ: 1pcs
Price: Welcome to Inquire
Payment Terms: T/T
Supply Ability: 20+SET+PER month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
10221508
Name:
U Bolt Making Machine
Voltage:
380V/440V/415V,50HZ/60HZ
Usage:
After The Wire Is Input, It Is Automatically Formed, Threaded, And Precisely Cut, Efficiently Producing Finished U-bolts.
After-sales Service Provided:
Online Support,Video Technical Support
Core Components:
Bearing, Motor, Pump
Core Selling Points:
Easy To Operate, Long Service Life, High Productivity, Patented Product, Automatic, Multi-functional, High Precision
Package:
Wooden Case
Warranty:
1 Year
Color:
Customizable
Packaging Details:
wooden box
Supply Ability:
20+SET+PER month
Highlight:

60pcs/Min U Bolt Making Machine

,

8pcs/Min U Bolt Making Machine

,

60pcs/min U Bolt Manufacturing Machine

Product Description
8–60pcs/Min U Bolt Making Machine
Heavy duty U Bolt Making Machine engineered for cutting, bending and manufacturing U bolts with exceptional efficiency and precision.
Key Features
  • Ultra-high Production Efficiency: 8-60 pcs/min for standard U-bolts, delivering 300% higher output than manual processing
  • Micron-level Dimensional Precision: ±0.05mm size tolerance, meeting strict DIN/ANSI/GB international standards
  • One-stop Full Automation: Integrated automatic feeding, straightening, bending, threading and discharging
  • Rapid Die Changeover: 10-minute mold replacement for quick switching between different U-bolt specifications
Technical Specifications
Model Diameter Range (mm) Length Range (mm) Weight (KG) Capacity (PCS/min)
M64-670-2001500-280040-65
M85-880-3002000-310040-60
M106-10130-5002900-420025-60
M128-12160-8003700-1100025-55
M1410-14200-8004300-1200025-55
M1612-16200-8006800-1350025-50
M2016-20400-80012500-1800025-45
M2418-24400-100013500-2100020-40
M2720-27400-10001400-2300015-35

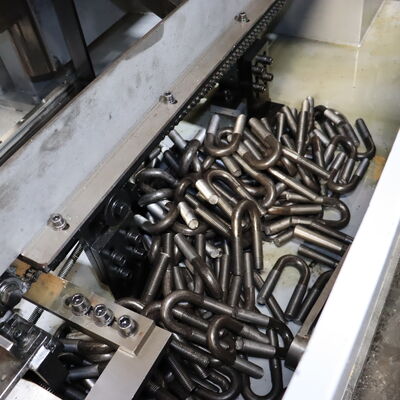

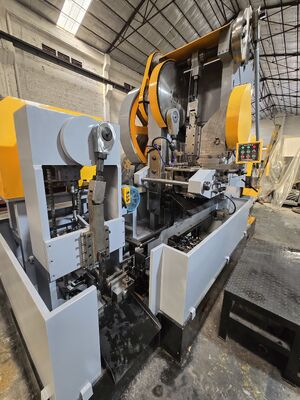

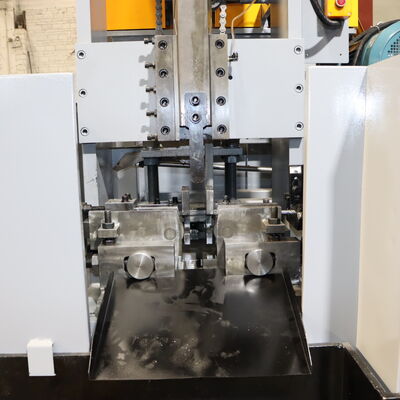

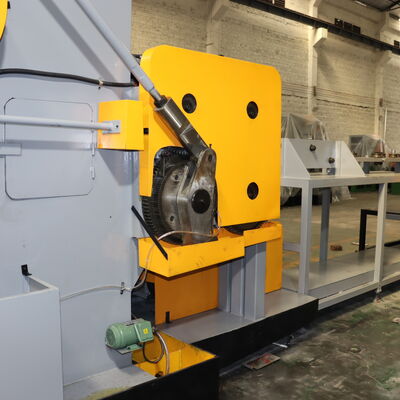

Product Gallery
Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 0 Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 1 Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 2 Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 3 Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 4 Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 5 Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 6 Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 7
Operational Advantages
Fully Automated Workflow, Drastic Labor Cost Reduction
Integrates automatic feeding, straightening, bending, threading and discharging operations. Requires only 1 operator for supervision, reducing labor costs by 60% compared with semi-automatic equipment.

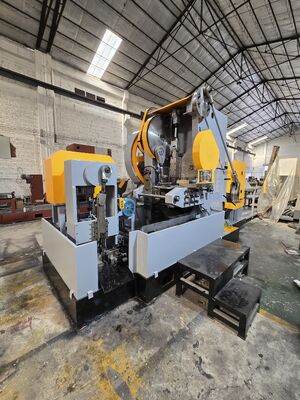

Factory Showcase
Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 8
International Exhibition
Fully Automated U Bolt Making Machine with 8–60pcs/min Output and ±0.05mm Precision for High-Efficiency Manufacturing 9
