| Brand Name: | Heling Machine |
| Model Number: | M24-600U |
| MOQ: | 1pcs |
| Price: | Welcome to Inquire |
| Payment Terms: | T/T |
| Supply Ability: | 20+SET+PER month |

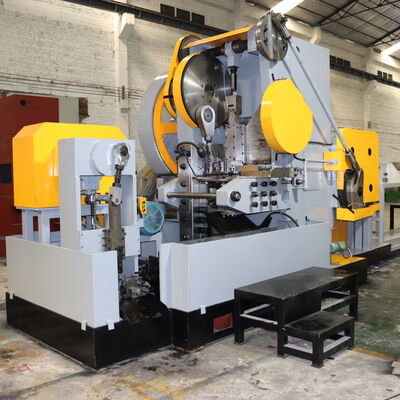

High Capacity U Bolt Making Machine Offering Continuous Operation and Accurate Forming of U Bolts for Multiple Industries
Feature:
1.Intelligent Control System, Easy Operation
Equipped with touch screen interface for parameter setting and production data tracking; no professional skills required for operation.
2.Built-in Fault Alarm, High Safety
Automatically stops running and triggers alarms in case of material shortage or abnormal operation, avoiding equipment damage and safety hazards.
3.Durable Structure, Low Maintenance Cost
Key components are made of high-hardness alloy steel, with a service life of over 8 years; routine maintenance only needs simple lubrication.
4.Stable Performance, Low Rejection Rate
Optimized transmission mechanism reduces workpiece deformation; the overall rejection rate is controlled below 0.3%.
Specification:
| Model |
Max.Thread Diamete (mm) |
Max.U-Bolt Blank Length (mm) |
Main Motor(KW) |
Straighten The Motor(KW) |
Froming Motors(KW) |
Weight (KG) |
Capacity (PCS/mm) |
Volume(L*W*H)(m) |
| M6-200U | 6 | 200 | 5.5 | 2.2 | 2.2 | 2300 | 50-70 | 2.3*0.9*1.6 |
| M8-300U | 8 | 300 | 11 | 3 | 3 | 2800 | 40-65 | 3.5*1.1*1.95 |
| M10-220U | 10 | 220 | 11 | 3 | 3 | 3400 | 40-60 | 3.6*1.2*1.95 |
| M10-300U | 10 | 300 | 11 | 3 | 3 | 3500 | 40-60 | 3.6*1.2*1.95 |
| M10-400U | 10 | 400 | 11 | 3 | 3 | 3800 | 40-60 | 3.75*1.2*1.95 |
| M10-500U | 10 | 500 | 11 | 3 | 3 | 4200 | 40-60 | 3.9*1.2*1.95 |
| M10-620U | 10 | 620 | 11 | 3 | 3 | 4800 | 40-60 | 4.0*1.2*1.95 |
| M12-300U | 12 | 300 | 18.5 | 4 | 4 | 5000 | 40-55 | 4.2*1.4*2.25 |
|
M12-400U |
12 | 400 | 18.5 | 4 | 4 | 5800 | 35-50 | 4.2*1.4*2.25 |
|
M12-500U |
12 | 500 | 18.5 | 4 | 4 | 6800 | 35-45 | 4.6*1.5*2.35 |
|
M12-600U |
12 | 600 | 18.5 | 4 | 4 | 7200 | 35-45 | 4.8*1.5*2.35 |
|
M14-300U |
14 | 300 | 22 | 5.5 | 5.5 | 6200 | 35-50 | 4.3*1.5*2.35 |
|
M14-400U |
14 | 400 | 22 | 5.5 | 5.5 | 6800 | 35-50 | 4.3*1.5*2.35 |
|
M14-500U |
14 | 500 | 22 | 5.5 | 5.5 | 7500 | 35-50 | 4.5*1.5*2.35 |
|
M14-600U |
14 | 600 | 22 | 5.5 | 5.5 | 7800 | 35-50 | 5.0*1.5*2.35 |
|
M14-800U |
14 | 800 | 30 | 5.5 | 5.5 | 11000 | 30-40 | 5.85*1.95*2.65 |
|
M16-300U |
16 | 300 | 30 | 7.5 | 7.5 | 9500 | 30-45 | 4.4*1.95*2.65 |
|
M16-400U |
16 | 400 | 30 | 7.5 | 7.5 | 10000 | 30-45 | 4.5*1.95*2.65 |
|
M16-500U |
16 | 500 | 37 | 7.5 | 7.5 | 10800 | 30-45 | 5.1*1.95*2.65 |
|
M16-600U |
16 | 600 | 37 | 7.5 | 7.5 | 12000 | 30-45 | 5.1*1.95*2.65 |
|
M16-800U |
16 | 800 | 37 | 7.5 | 7.5 | 16800 | 25-35 | 5.9*1.95*2.65 |
|
M20-400U |
20 | 400 | 45 | 11 | 11 | 14500 | 35-45 | 5.5*2.05*3.2 |
|
M20-600U |
20 | 600 | 45 | 11 | 11 | 16000 | 25-38 | 6.1*2.05*3.2 |
|
M20-650U |
20 | 650 | 45 | 11 | 11 | 16800 | 25-38 | 6.1*2.05*3.2 |
|
M20-800U |
20 | 800 | 45 | 11 | 11 | 19000 | 25-30 | 6.5*2.25*3.2 |
|
M20-1000U |
20 | 1000 | 45 | 11 | 11 | 22000 | 25-30 | 6.8*2.25*3.2 |
|
M24-400U |
24 | 400 | 45 | 11 | 11 | 14500 | 30-45 | 5.5*2.25*3.2 |
|
M24-600U |
24 | 600 | 45 | 11 | 11 | 17000 | 25-38 | 6.1*2.25*3.2 |
|
M24-800U |
24 | 800 | 45 | 11 | 11 | 20800 | 25-30 | 6.5*2.25*3.2 |
|
M24-1000U |
24 | 1000 | 45 | 11 | 11 | 23000 | 25-30 | 6.8*2.35*3.2 |
Description:
Advantage:
Intelligent Operation & Safe Production
Equipped with a user-friendly touch screen for parameter setting and data tracking; built-in fault alarm system automatically stops the machine in case of abnormalities, eliminating potential safety hazards.
Factory Showcase:
